Straight Tube-Male Sae Orb 5006S-16-10

Specifications

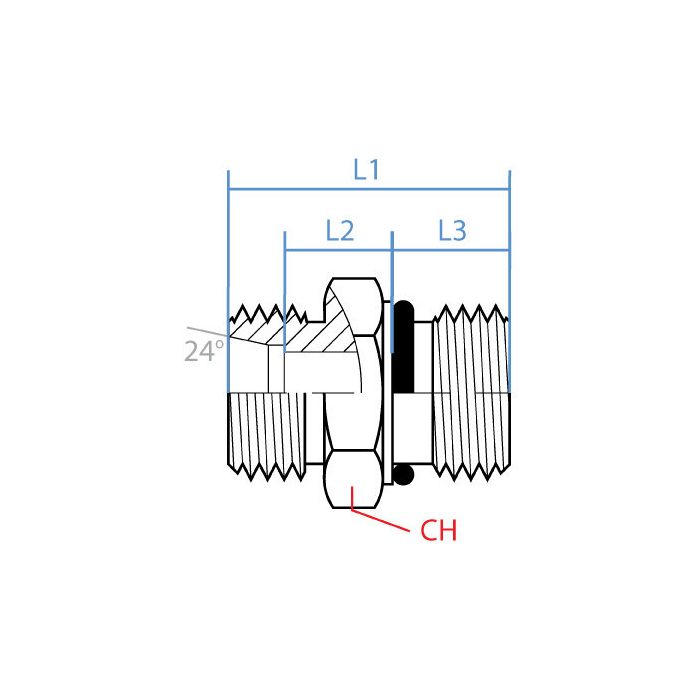

CH Width 27mm	L1 Length 40mm	L2 Length 18.5mm	L3 Length 13mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout 7/8 - 14 UNF	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006S-16-10	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Got an M24 x 1.5 DIN tube line coming off a pump and need to tie it into a 7/8-14 ORB port on the valve block. This the right piece for that?

Question by: Marvin C on Jan 12, 2026, 8:47 AM

Yeah, that's exactly what this adapter is built for. One end is M24 x 1.5 male DIN tube thread, the other is 7/8-14 UNF male ORB sized for a 5/8" port. Straight configuration keeps the flow path clean and direct with no bends or offsets in between. Steel construction holds up fine in standard hydraulic service. If those thread specs match what you're working with, you're good to go.

Answer by: Customer Support on Jan 13, 2026, 6:26 PM

Will this here adapter fit right if I'm connectin' a DIN tube to a SAE O-ring setup?

Question by: Wade A on May 8, 2025, 9:29 PM

This adapter's designed for exactly that – transitioning between a metric DIN tube connection and a SAE ORB hydraulic circuit. Just make sure your sizes match up: M24 x 1.5 on the DIN side and 7/8-14 UNF for the SAE ORB.

Answer by: Customer Support on May 10, 2025, 7:43 PM

got a metric DIN tube end thats M24 x 1.5 (S16). is this the piece that’ll get me over to a 5/8 ORB port?

Question by: Gene G on Jul 9, 2025, 9:33 AM

You’re matching it up right. Side 1 is an M24 x 1.5 male DIN tube thread in size S16, and side 2 is a 7/8-14 UNF male SAE O-Ring Boss sized for a 5/8 inch port, so it’s meant for that metric DIN to SAE ORB transition.

Answer by: Customer Support on Jul 11, 2025, 9:26 AM
