Din X Male Sae O'Ring Complete

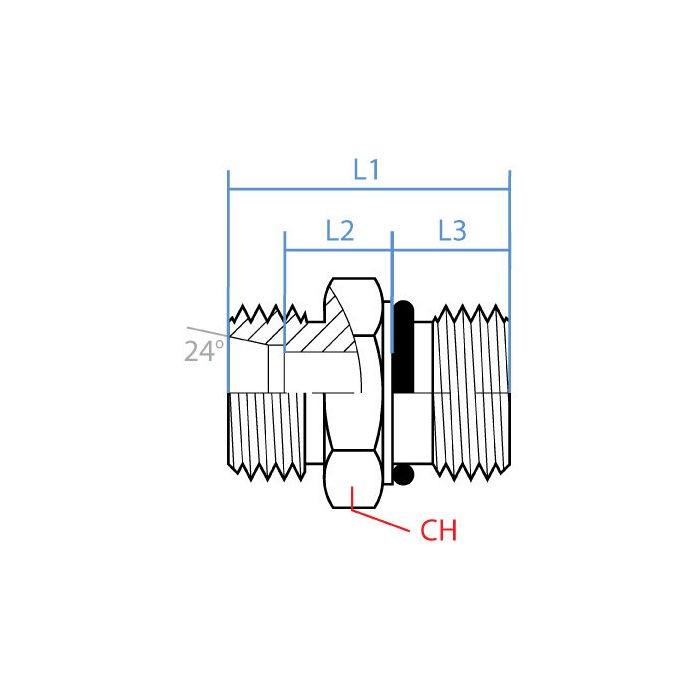

CH Width 41mm	L1 Length 40mm	L2 Length 17.5mm	L3 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-28-16C	Product Weight 0.40 lbs

Product Questions & Answers 1

Product Questions & Answers

got a DIN tube nut that’s M36 x 2.0, size L28. Is this the right straight adapter to go over to an SAE O-ring male?

Question by: Neal W on May 28, 2025, 7:12 PM

Match-up looks right if your DIN side is M36 x 2.0 male (size L28) and you need to convert to a male SAE O-ring face seal with 1-5/16 - 12 UN threads (size 1"). It is a straight steel Adaptall adapter with those exact two end callouts.

Answer by: Customer Support on May 30, 2025, 10:27 AM
