Din X Male Sae O'Ring Complete

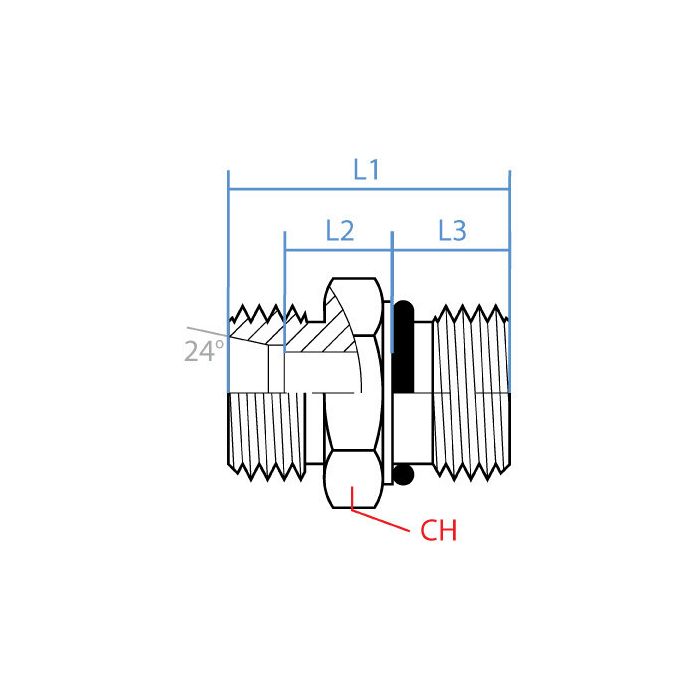

CH Width 32mm	L1 Length 37mm	L2 Length 16.5mm	L3 Length 13mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout 7/8 - 14 UNF	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Orb-Sae	Alternate Part Numbers Alternate Part Number 5006-L-2210C	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-22-10C	Product Weight 0.26 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this here fitting hold up okay in a high-pressure hydraulic system?

Question by: Lance C on Jul 2, 2025, 6:34 PM

This fitting is well-suited for medium and high-pressure hydraulic systems. It's designed to provide a dependable transition between DIN and SAE connection standards where you need it.

Answer by: Customer Support on Jul 4, 2025, 6:21 AM
