Din X Male Sae O'Ring Complete 5006L-18-08C

Specifications

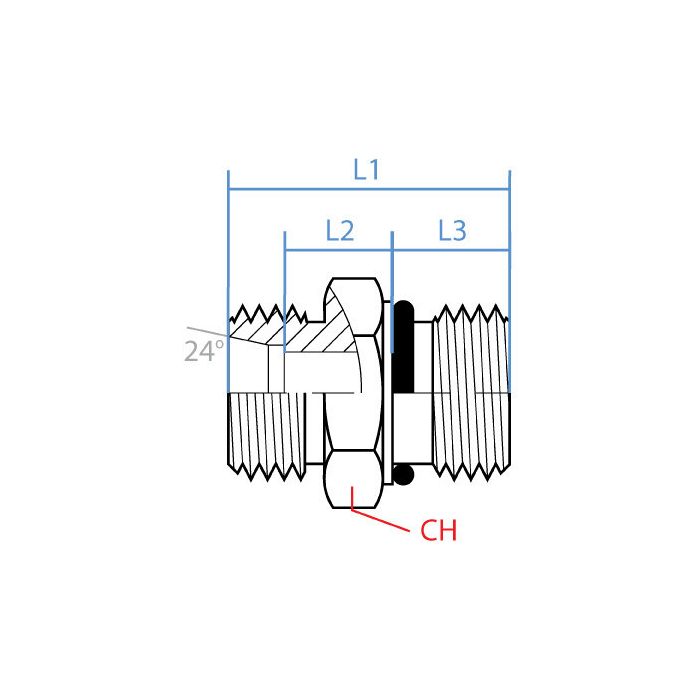

CH Width 27mm	L1 Length 33mm	L2 Length 14.5mm	L3 Length 11mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-18-08C	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a DIN tube line to an SAE o-ring port. is this the right adapter for that?

Question by: Hubert S on Feb 18, 2026, 11:57 AM

For tying those two standards together, this adapter is made exactly for that kind of mismatch. One end is M26 x 1.5 DIN Tube male (L18), and the other end is a 3/4 - 16 UNF ORB SAE male, so it bridges a DIN tube connection over to an SAE O-ring boss style connection in a straight fitting.

Answer by: Customer Support on Feb 20, 2026, 6:08 AM

Will this fitting hold up okay in a hydraulic system that runs pretty much non-stop?

Question by: Ralph C on Nov 23, 2025, 7:53 AM

Crafted from high-quality steel, the DIN X Male Sae O'Ring Complete adapter is designed for robust performance and longevity, even in demanding hydraulic systems that operate continuously.

Answer by: Customer Support on Nov 24, 2025, 9:48 AM

Does this adapter go from a DIN tube fitting on one end to an SAE O-ring port on the other, or did I read that backwards?

Question by: Vince B on Mar 3, 2026, 6:56 PM

You've got it right. One side is an M26 x 1.5 DIN tube male connection and the other is a 3/4-16 UNF SAE O-ring boss male. So if you're trying to tie a DIN-spec line into an SAE ORB port, this is the piece that bridges that gap. Both sides are male, so make sure your mating connections are female on both ends before you order.

Answer by: Customer Support on Mar 5, 2026, 6:29 PM
