Din X Male Sae O'Ring Complete

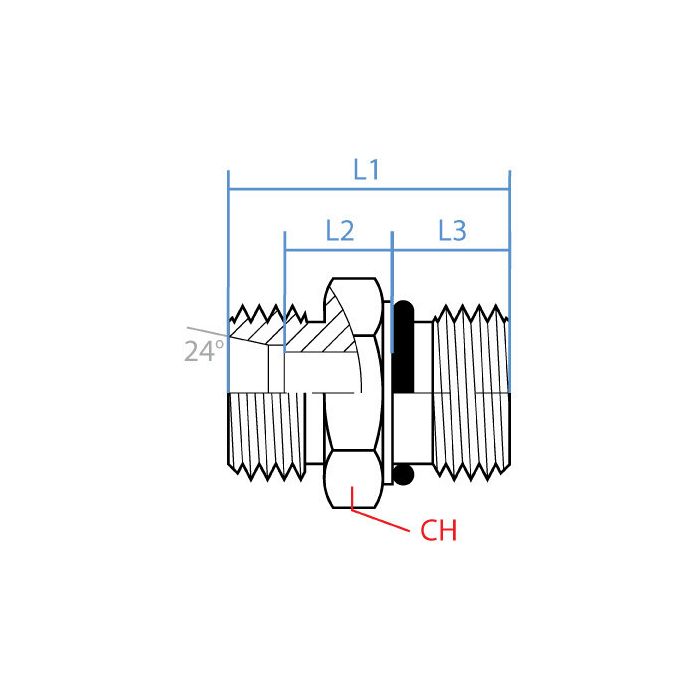

CH Width 24mm	L1 Length 32mm	L2 Length 14mm	L3 Length 11mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-15-08C	Product Weight 0.15 lbs

Product Questions & Answers

I just wanna make sure this fittin' right. My old one's got them metric threads, M22, is that what this has on one side?

Question by: Carl H on Oct 27, 2025, 4:10 PM

You got it. One side's a DIN tube connection with that M22 x 1.5 callout. On the other end, it's an Orb-Sae connection, size 1/2".

Answer by: Customer Support on Oct 29, 2025, 3:59 PM
