Straight Tube-Male Sae Orb

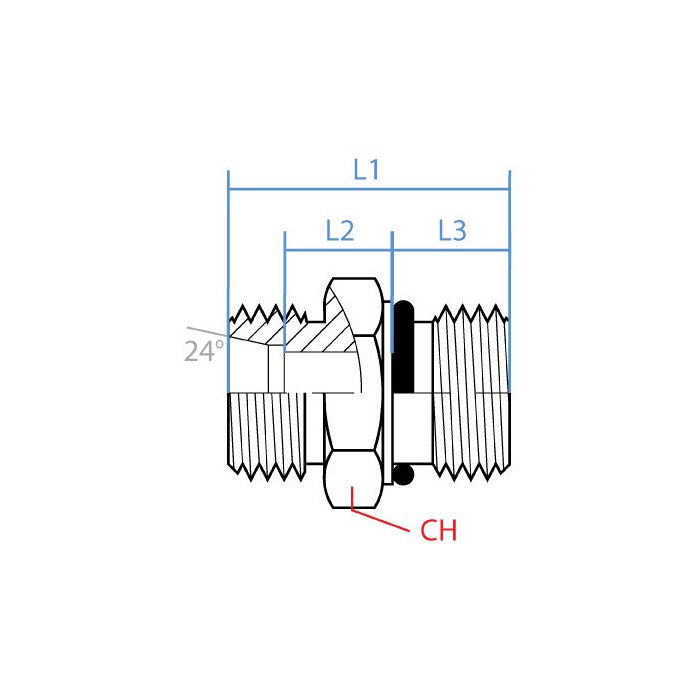

CH Width 24mm	L1 Length 32mm	L2 Length 14mm	L3 Length 11mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-15-08	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the thread on the tube side of this fitting, is it metric or standard?

Question by: Eddie D on Nov 11, 2025, 6:42 AM

The tube end is metric. It runs M22 x 1.5 thread, sized L15, so it's built to mate with DIN-spec tube lines on that side. The other end steps over to a 3/4-16 UNF SAE O-Ring Boss port, which is the standard ORB thread you'd see on most North American hydraulic components. That's the whole point of this adapter, bridging a metric tube line into an SAE ORB port without needing extra fittings in between.

Answer by: Customer Support on Nov 13, 2025, 6:12 AM
