Din X Male Sae O'Ring Complete

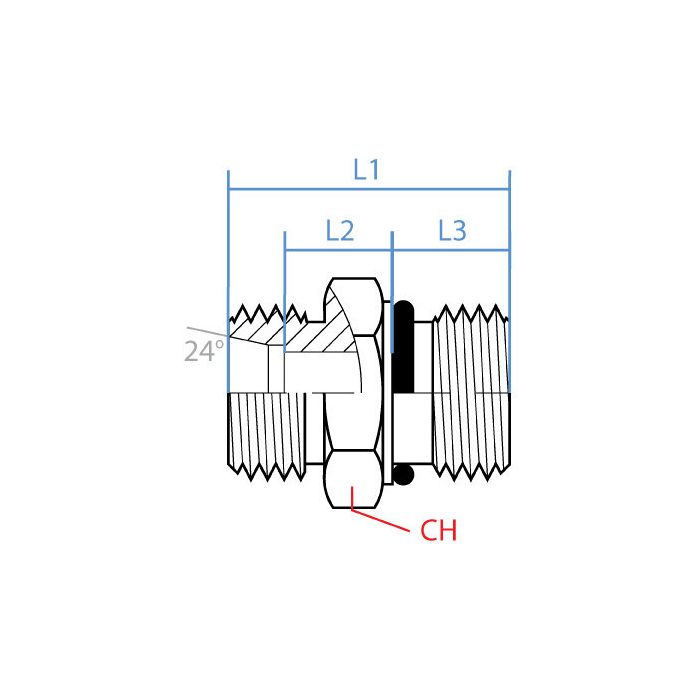

CH Width 27mm	L1 Length 34mm	L2 Length 14mm	L3 Length 13mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout 7/8 - 14 UNF	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-12-10C	Product Weight 0.18 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here fitting hold up okay if I'm usin' it for somethin' like hydraulics on farm equipment?

Question by: Neil W on May 11, 2025, 9:58 PM

For hydraulic setups on farm equipment, this adapter's steel construction should provide the necessary durability.

Answer by: Customer Support on May 13, 2025, 6:27 PM

Got a system running M18 x 1.5 DIN tube fittings on one end and need to tie into a 7/8-14 ORB port on a valve block, this the right adapter for that?

Question by: Sheila C on May 18, 2025, 1:47 PM

Yeah, that's exactly what this one's built for. One side is M18 x 1.5 DIN tube, male, and the other is a 7/8-14 UNF ORB-SAE, also male. If your valve block has a female ORB port and you're coming off a DIN tube line, this adapter bridges that connection directly. Steel construction, straight configuration, so no angles or offsets to account for during layout.

Answer by: Customer Support on May 20, 2025, 6:15 AM
