Din X Male Sae O'Ring Complete

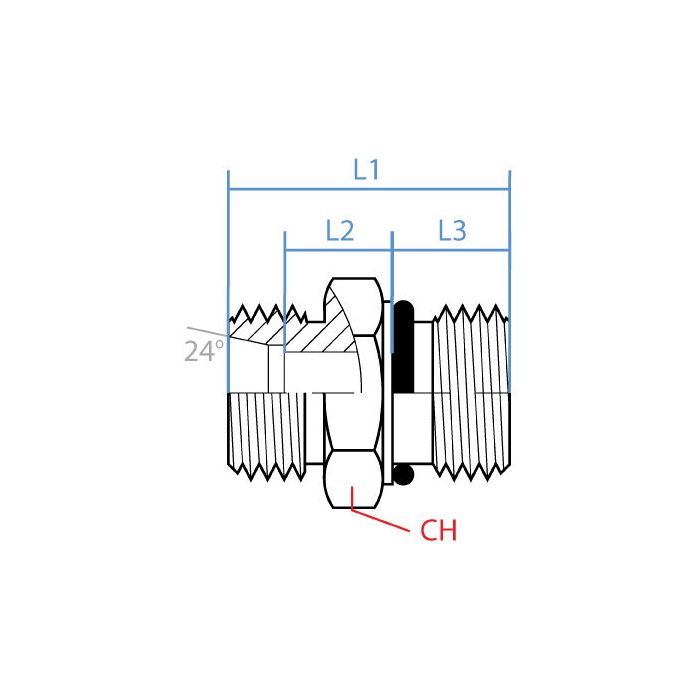

CH Width 24mm	L1 Length 31mm	L2 Length 13mm	L3 Length 11mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-12-08C	Product Weight 0.11 lbs

Product Questions & Answers 1

Product Questions & Answers

i’ve got a DIN tube fitting that’s M18 x 1.5 on one end and need to land it on an SAE O-ring port, is this the right adapter?

Question by: Scott D on Dec 4, 2025, 10:26 AM

For that mix of ends, it matches up. One side is a male M18 x 1.5 DIN tube connection (L12), and the other side is a male 3/4 - 16 UNF SAE O-ring (ORB) connection listed as 1/2 inch.

Answer by: Customer Support on Dec 5, 2025, 1:24 PM
