Straight Tube-Male Sae Orb

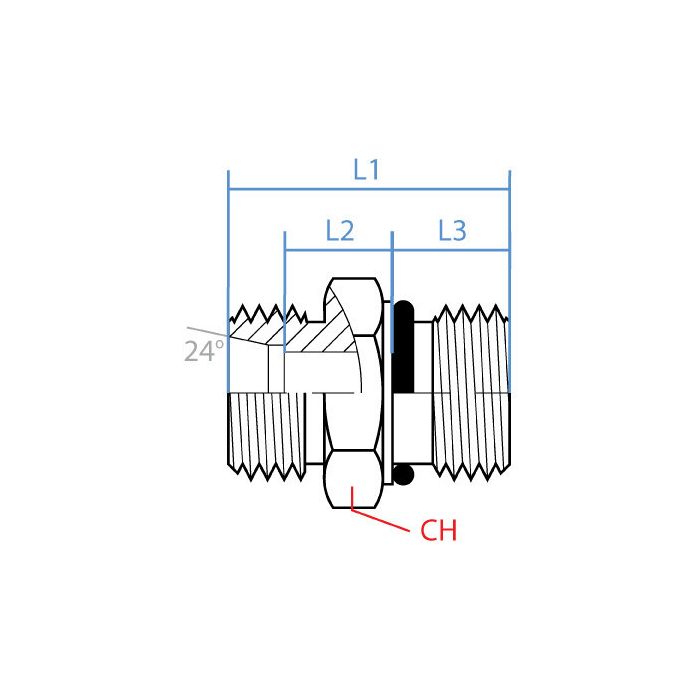

CH Width 24mm	L1 Length 31mm	L2 Length 13mm	L3 Length 11mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-12-08	Product Weight 0.11 lbs

Product Questions & Answers 2

Product Questions & Answers

got a DIN tube connection on my hydraulic line that's M18 x 1.5, will this fitting hook up to a 1/2" ORB-SAE port on the other end without needing any extra adapters?

Question by: Brent H on Feb 18, 2026, 10:54 AM

That's what this one does. One end is a male DIN tube connection at M18 x 1.5 with an L12 size, and the other end is a male ORB-SAE at 3/4-16 UNF with a 1/2" size. Straight through, no additional adapters needed between those two connection types.

Answer by: Customer Support on Feb 20, 2026, 6:24 AM

Reckon this fitting will hold up alright in a hydraulic system running around 2000 PSI?

Question by: Pete T on Jul 5, 2025, 1:30 PM

Constructed from steel, this Adaptall fitting should provide a reliable connection for hydraulic systems when properly installed according to industry best practices. Keep in mind the specific pressure rating for your complete system should always be verified.

Answer by: Customer Support on Jul 6, 2025, 1:42 PM
