Din X Male Sae O'Ring Complete

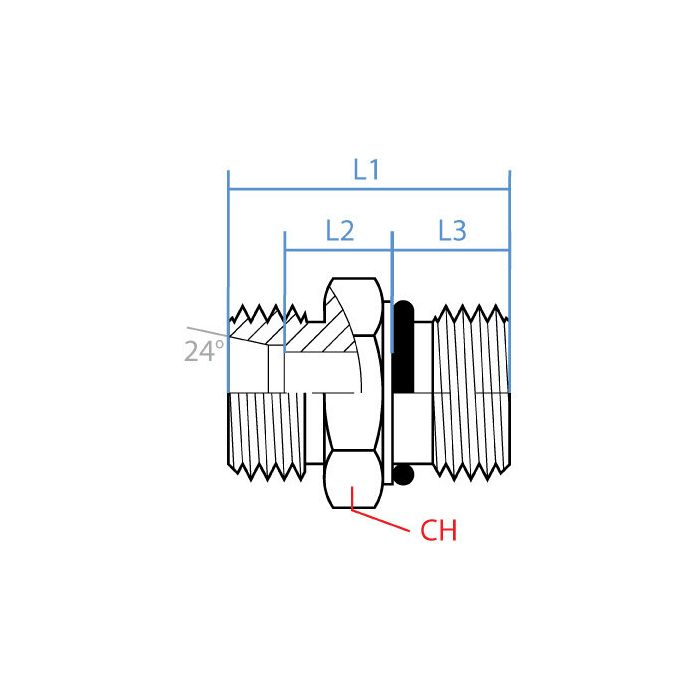

CH Width 24mm	L1 Length 31mm	L2 Length 13mm	L3 Length 11mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-10-08C	Product Weight 0.11 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the thread size on the DIN side of this fitting? trying to match it up to some existing tubing on a hydraulic line

Question by: Sheila P on Jun 24, 2025, 2:23 PM

The DIN tube side runs M16 x 1.5 metric thread. That's a male connection, so you'd be mating it to a female DIN port or tube nut of the same spec. The SAE side is 3/4-16 UNF, also male, with an O-ring boss seat. Both sides are straight through, no angle to account for during installation.

Answer by: Customer Support on Jun 26, 2025, 8:02 AM
