Din X Male Sae O'Ring Complete

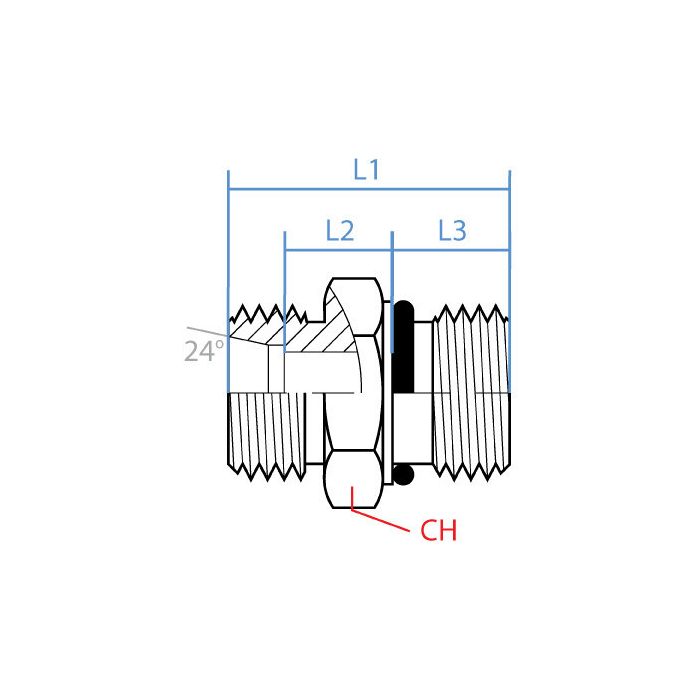

CH Width 19mm	L1 Length 27mm	L2 Length 10mm	L3 Length 10mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Orb-Sae	Alternate Part Numbers Alternate Part Number 5006L-08-6C	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-08-06C	Product Weight 0.07 lbs

Product Questions & Answers 1

Product Questions & Answers

got a line running M14 x 1.5 DIN tube on one end and need to tie into a 3/8 SAE ORB port, this the right adapter for that?

Question by: Keith B on Nov 11, 2025, 9:49 PM

That's exactly what this one's built for. One side threads onto an M14 x 1.5 DIN tube end (L08 sizing) and the other side is a 9/16-18 UNF male ORB thread sized for 3/8 inch connections. Steel construction, straight configuration, so it drops right into that kind of cross-standard hookup without needing additional fittings in between.

Answer by: Customer Support on Nov 13, 2025, 9:31 AM
