Straight Tube-Male Sae Orb

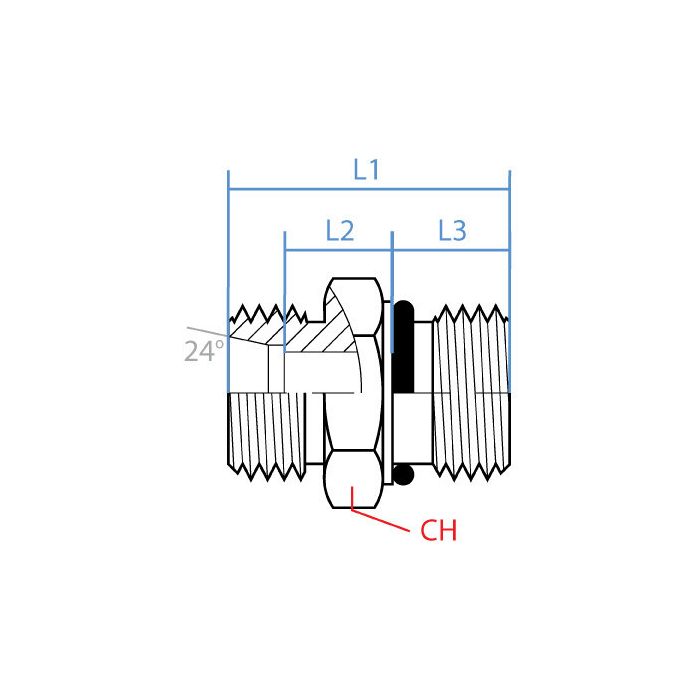

CH Width 17mm	L1 Length 26mm	L2 Length 10mm	L3 Length 9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Orb-Sae	Alternate Part Numbers Alternate Part Number 5006L-0804	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-08-04	Product Weight 0.04 lbs

Product Questions & Answers

trying to swap in a fitting i already got, is this one straight male on both ends or is one side female?

Question by: Billy C on Jan 22, 2026, 5:57 PM

Both ends are male on this adapter. One side is an M14 x 1.5 DIN tube connection, and the other side is a 7/16-20 UNF ORB (SAE) connection.

Answer by: Customer Support on Jan 24, 2026, 11:52 AM
