Din X Male Sae O'Ring Complete

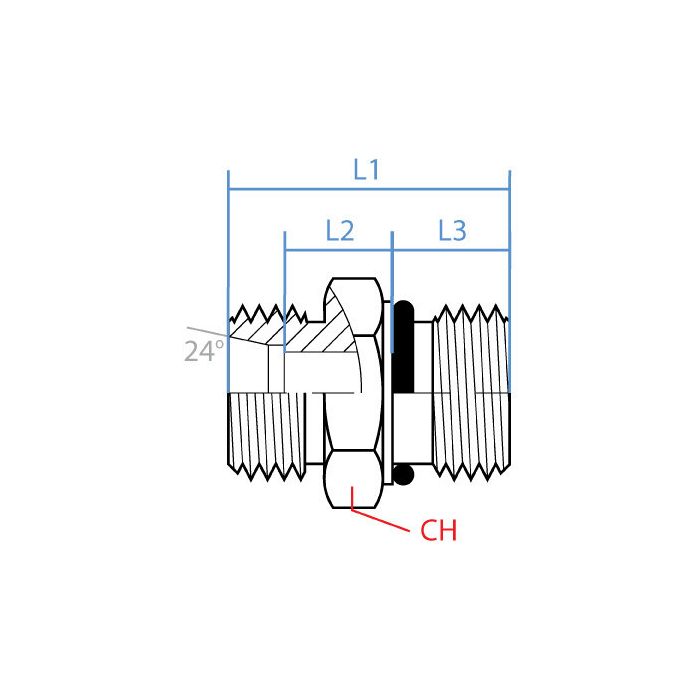

CH Width 19mm	L1 Length 27mm	L2 Length 10mm	L3 Length 10mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-06-06C	Product Weight 0.08 lbs

Product Questions & Answers 1

Product Questions & Answers

got a metric DIN tube side on one end and an ORB port on the other. Is this the piece that ties M12 x 1.5 (L06) into a 9/16-18 UNF ORB 3/8 male?

Question by: Cheryl C on May 31, 2025, 6:13 PM

It matches that exact adapter setup. Side 1 is a male M12 x 1.5 DIN tube connection in size L06, and side 2 is a male 9/16-18 UNF ORB SAE connection for a 3/8 inch port.

Answer by: Customer Support on Jun 2, 2025, 5:21 PM
