Straight Tube-Male Sae Orb

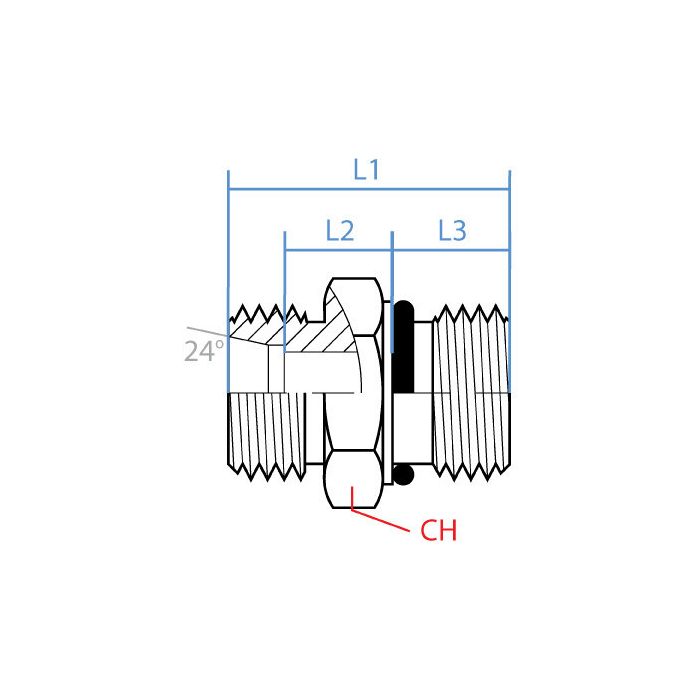

CH Width 19mm	L1 Length 27mm	L2 Length 10mm	L3 Length 10mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5006L-06-06	Product Weight 0.07 lbs

Product Questions & Answers 1

Product Questions & Answers

got a metric DIN tube setup on one end and need to go into a 9/16-18 ORB port on the other, is this the right adapter?

Question by: Merle B on Jun 7, 2025, 9:20 AM

For that combo, yes. One side is an M12 x 1.5 DIN tube male, and the other side is a 9/16 - 18 UNF SAE ORB male, so it bridges a metric DIN tube connection to an SAE ORB connection.

Answer by: Customer Support on Jun 9, 2025, 6:49 AM
