Din X Mbspp Es Seal Complete 5002S-25-12C

Specifications

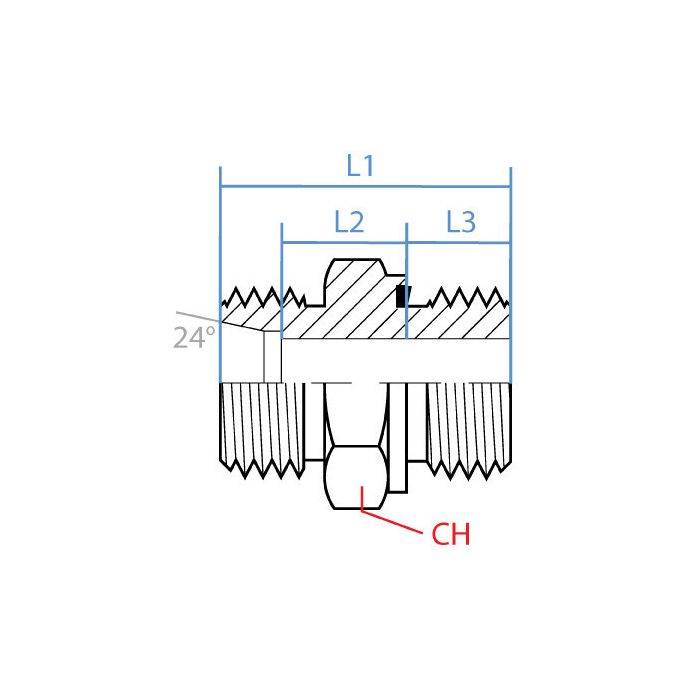

CH Width 41mm	L1 Length 51mm	L2 Length 23mm	L3 Length 16mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5002S-25-12C	Product Weight 0.48 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s M36 x 2.0 male, will this mate up to it and give me a 3/4 BSPP male on the other side?

Question by: Floyd W on Sep 16, 2025, 6:35 AM

On the DIN tube side, it is an M36 x 2.0 male (Side 1, S25). The other end is a male BSPP port thread, G 3/4-14 (Side 2, 3/4 inch), so it works as a straight adapter between those two thread standards.

Answer by: Customer Support on Sep 17, 2025, 5:37 PM

got a DIN tube end coming off a pump housing, M36 x 2.0 thread, and I need to tie it into a BSPP port on a valve block, 3/4 inch. this the right fitting for that?

Question by: Merle K on Jul 23, 2025, 8:23 AM

That's exactly the transition this fitting handles. One side is M36 x 2.0 male DIN tube, the other is G 3/4-14 male BSPP, so it bridges those two thread standards in a single straight adapter. The ES seal design takes care of sealing at the BSPP end, which matters when you're connecting into a port face rather than relying on thread engagement alone. Steel construction throughout, 51mm overall length, so factor that into your clearance before you spec it in.

Answer by: Customer Support on Jul 25, 2025, 8:19 AM
