Din X Mbspp Es Seal Complete

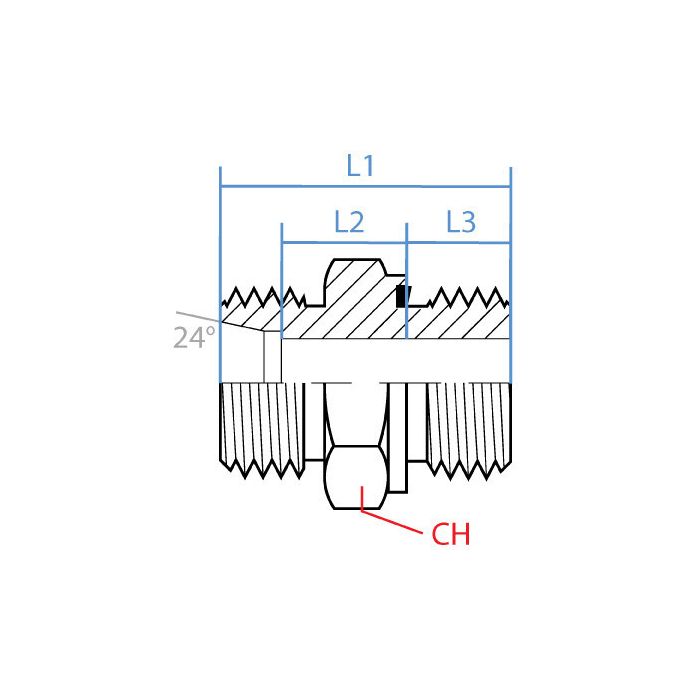

CH Width 27mm	L1 Length 41mm	L2 Length 18.5mm	L3 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-08733760, Alternate Part Number MINO-03671X96005	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5002S-16-08C	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the width across the flats on this fitting? Just need to make sure I got the right wrench.

Question by: Lyle B on Jun 2, 2025, 2:33 PM

The CH width, which is what you'll use your wrench on, is 27mm.

Answer by: Customer Support on Jun 4, 2025, 6:51 AM

fitting has a M24 X 1.5 thread on one end and G 1/2 - 14 on the other, that right?

Question by: Lee B on Aug 16, 2025, 1:14 PM

Correct on both counts. Side 1 is a male DIN tube connection with an M24 X 1.5 callout at S16 size, and Side 2 is a male BSPP connection with a G 1/2 - 14 callout at 1/2 inch. Both ends are male, so keep that in mind when you're planning out your port or fitting configuration on the receiving side.

Answer by: Customer Support on Aug 17, 2025, 6:52 PM
