Din X Mbspp Es Seal 5002S-12-04

Specifications

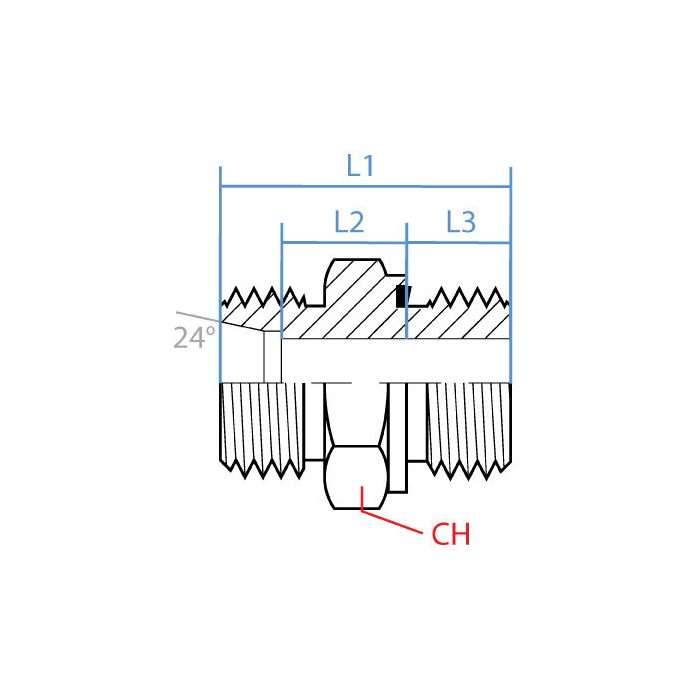

CH Width 22mm	L1 Length 36mm	L2 Length 16.5mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5002S-12-04	Product Weight 0.13 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook up a DIN tube line to a BSPP port, is this the right adapter?

Question by: Floyd M on Jun 2, 2025, 9:44 PM

For that kind of hookup, it matches a DIN Tube male on one side and a BSPP male on the other. Side 1 is M20 x 1.5 with size S12, and Side 2 is G 1/4 - 19 with a 1/4 inch size, so it is meant to bridge those two connection types.

Answer by: Customer Support on Jun 4, 2025, 5:22 PM

How long is this adapter from end to end? Just need to make sure it'll fit in the space I got.

Question by: Duane C on Dec 2, 2025, 2:40 PM

The adapter's overall length (L1) is 36mm. There are also two other lengths, L2 at 16.5mm and L3 at 12mm, which might be helpful depending on how you're measuring.

Answer by: Customer Support on Dec 4, 2025, 11:18 AM

trying to swap an old adapter out, is this the one thats M20 x 1.5 on one end and G 1/4-19 on the other?

Question by: Gary B on Aug 9, 2025, 6:07 PM

For a straight steel adapter with a DIN Tube male end in M20 x 1.5 (size S12) and a BSPP male end in G 1/4 - 19 (1/4 inch size), that matches exactly what this part is built as.

Answer by: Customer Support on Aug 11, 2025, 6:05 AM
