Din X Mbspp Es Seal Complete 5002S-08-04C

Specifications

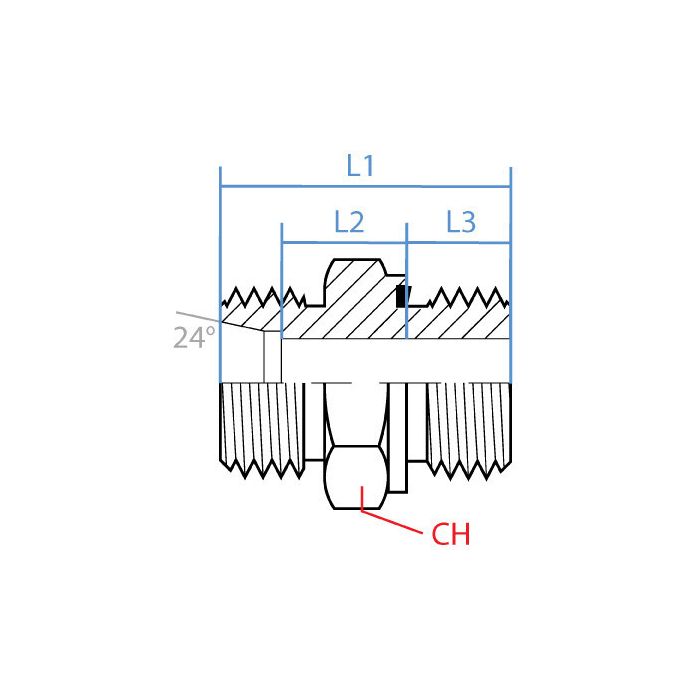

CH Width 19mm	L1 Length 34mm	L2 Length 15mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5002S-08-04C	Product Weight 0.09 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to match up fittings here. is this the straight steel adapter that goes from a DIN tube M16 x 1.5 (S08) over to a G 1/4-19 BSPP male with an ES seal?

Question by: Diane E on Jun 5, 2025, 9:51 PM

You’ve got it. One end is a DIN tube connection with an M16 x 1.5 male in size S08, and the other end is a BSPP male G 1/4 - 19 in 1/4 inch size with an ES seal. It’s a straight steel adapter.

Answer by: Customer Support on Jun 7, 2025, 1:34 PM

got a hydraulic line running DIN tube fittings on one end and need to tie into a BSPP port on a piece of equipment, the BSPP side is 1/4 inch. this the right adapter for that?

Question by: Keith A on Aug 8, 2025, 11:50 AM

For a straight connection between an S08 DIN tube line and a 1/4 inch BSPP port, yes, that's exactly what this fitting is built for. The DIN side runs M16 x 1.5 male thread at S08 size, and the BSPP side is a G 1/4-19 male end with an ES seal included. Both ends are male, so make sure your mating ports are female on both sides before ordering.

Answer by: Customer Support on Aug 10, 2025, 10:02 AM

Will this here fitting hold up alright in a hydraulic setup, or is it more for lower pressure stuff?

Question by: Chad G on Aug 24, 2025, 2:13 PM

Designed for hydraulic applications, this steel adapter ensures a secure connection between DIN tube and BSPP systems.

Answer by: Customer Support on Aug 25, 2025, 9:40 PM
