Din X Mbspp Es Seal Complete 5002S-06-04C

Specifications

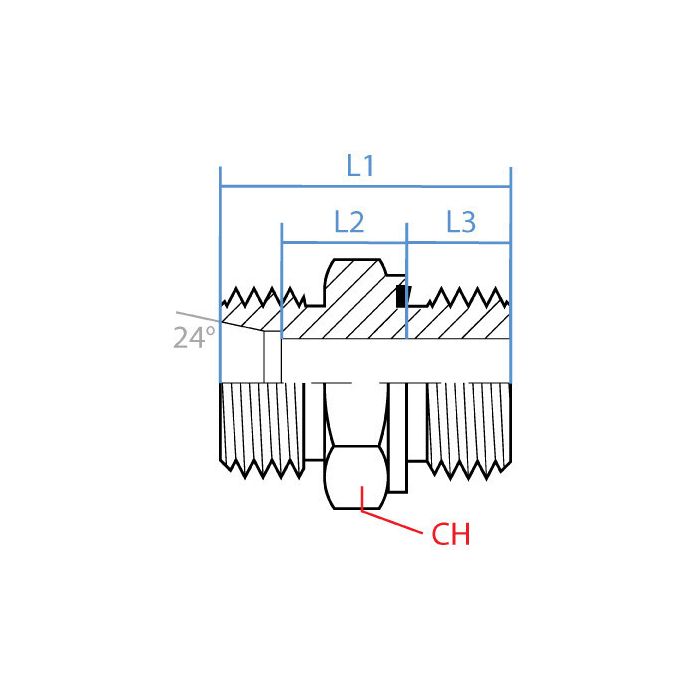

CH Width 19mm	L1 Length 32mm	L2 Length 13mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5002S-06-04C	Product Weight 0.09 lbs

Product Questions & Answers 2

Product Questions & Answers

got a BSPP-ported valve on a power unit and need to tie it into a DIN tube circuit, this the right adapter for that kind of crossover?

Question by: Dean G on Jun 30, 2025, 8:09 AM

That's the kind of situation this fitting covers. One end is M14 x 1.5 DIN tube (S06), and the other end is G 1/4-19 BSPP male in 1/4" size, so it bridges those two standards in a single straight adapter. The BSPP side uses an elastomeric face seal, which keeps things leak-free at the connection point. Steel construction, 32mm overall length, so it's compact enough to fit in tight hydraulic connections arrangements around manifolds and power units without adding much stick-out.

Answer by: Customer Support on Jul 1, 2025, 12:02 PM

got a din tube line with M14 x 1.5 on it, will this adapter mate up to a 1/4 BSPP port?

Question by: Hubert W on Oct 23, 2025, 7:34 PM

For tying those two standards together, it has an M14 x 1.5 male DIN tube end (S06) on one side and a G 1/4 - 19 male BSPP end on the other, so it fits a 1/4 inch BSPP female port.

Answer by: Customer Support on Oct 24, 2025, 8:39 PM
