Din X Mbspp Es Seal 5002L-28-16

Specifications

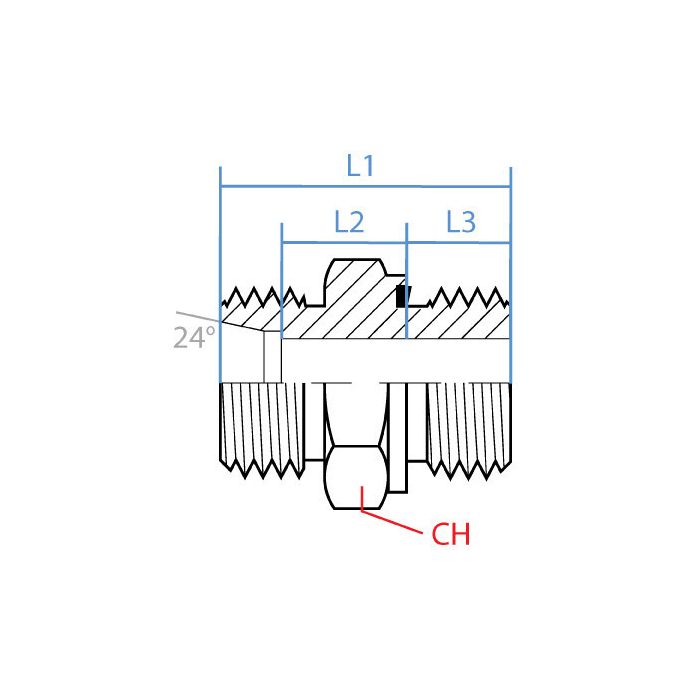

CH Width 41mm	L1 Length 43mm	L2 Length 17.5mm	L3 Length 18mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5002L-28-16	Product Weight 0.37 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a DIN tube end into a 1 inch BSPP port, is this the right adapter?

Question by: Neal H on Nov 30, 2025, 4:10 PM

For that kind of mix-and-match connection, it’s a straight steel adapter that goes from a DIN tube fitting on one side to a male BSPP port on the other. The DIN side is M36 x 2.0 in an L28 configuration, and the BSPP side is a 1 inch male thread listed as G 1 - 11 with an ES face seal.

Answer by: Customer Support on Dec 2, 2025, 6:14 AM

What exactly is the thread setup on both ends of this fitting? Trying to match it up to what I already got on the machine.

Question by: Ralph P on Dec 31, 2025, 5:00 PM

One end runs an M36 x 2.0 DIN tube thread in an L28 configuration, and the other end is a 1-inch male BSPP thread, which carries a G 1 - 11 designation. The BSPP side uses an ES face seal, so you get a solid leak-resistant connection where the fitting seats against the mating port face. Both sides are male, and the body is straight, so there's no angle to account for when you're planning the layout.

Answer by: Customer Support on Jan 2, 2026, 7:06 AM

What size is the thread on the BSPP side of this adapter?

Question by: Dale A on Sep 14, 2025, 8:28 AM

That side has a 1-inch BSPP male thread, which is designated as G 1 – 11.

Answer by: Customer Support on Sep 15, 2025, 7:51 PM
