Din X Mbspp Es Seal Complete 5002L-22-12C

Specifications

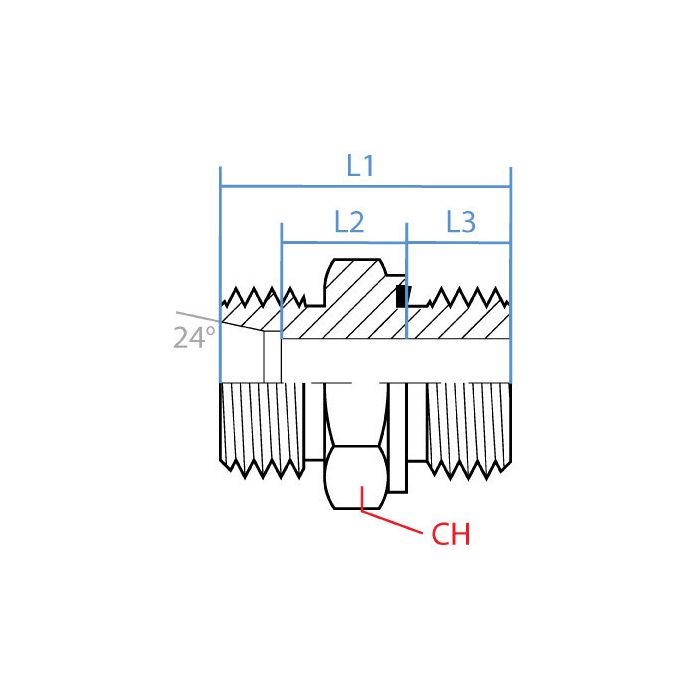

CH Width 32mm	L1 Length 40mm	L2 Length 16.5mm	L3 Length 16mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number 5002-L-2212C	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5002L-22-12C	Product Weight 0.22 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a manifold block ported in G 3/4 BSPP and need to tie into some L22 DIN tube lines, this adapter do that job?

Question by: Stan C on Jul 18, 2025, 1:36 PM

That's what it's built for. One end is M30 x 2.0 male DIN tube (L22 series), the other is G 3/4-14 male BSPP, so it bridges those two standards in a single straight fitting. The ES seal on the DIN end gives you a face seal connection, which holds up well on medium- to high-pressure hydraulic lines. Steel construction, 40mm overall length, and a 32mm wrench width means it fits into tighter spots without a lot of fuss.

Answer by: Customer Support on Jul 20, 2025, 6:55 AM

got a DIN tube end that’s M30 x 2.0 (L22). will this adapter get me over to a G 3/4-14 BSPP male port without a bunch of extra fittings?

Question by: Bobby C on Feb 2, 2026, 2:15 PM

For tying those two standards together, it’s the right style. One side is an M30 x 2.0 male DIN tube end in the L22 series, and the other side is a G 3/4-14 male BSPP. It’s a straight steel adapter meant to bridge a DIN tube connection over to BSPP-ported components.

Answer by: Customer Support on Feb 3, 2026, 4:31 PM

Will this fitting work if I need to connect a DIN tube to something with a BSPP port?

Question by: Cheryl P on Apr 14, 2025, 9:49 AM

This Adaptall adapter is made to connect a M30 x 2.0 male DIN tube end to a G 3/4-14 male BSPP fitting.

Answer by: Customer Support on Apr 16, 2025, 6:25 AM
