Din Union

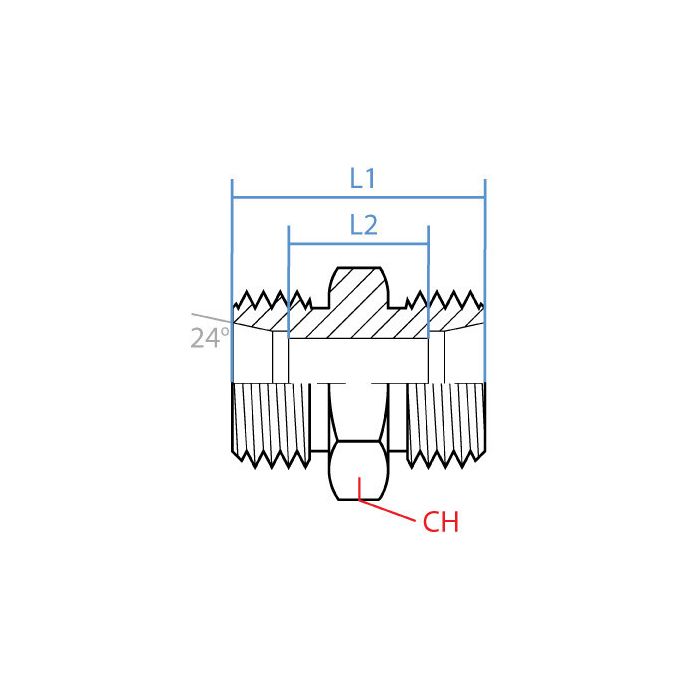

CH Width 46mm	L1 Length 54mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M42 X 2.0	Side 1 Gender M	Side 1 Size S30	Side 1 Type Din Tube	Side 2 Callout M42 X 2.0	Side 2 Gender M	Side 2 Size S30	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5000S-30	Product Weight 0.73 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to match up a union for my DIN tube lines. is this one straight through with M42 x 2.0 on both ends?

Question by: Ricky A on Jul 26, 2025, 6:03 AM

For a straight DIN tube connection, this union is set up with M42 x 2.0 male threads on both sides. Both ends are listed as DIN tube type with size S30, so it is a straight-through union in that same callout and size.

Answer by: Customer Support on Jul 28, 2025, 6:36 AM

both sides on this union are M42 x 2.0 male, does that mean I need a female-threaded DIN tube fitting on each end to make up the connection?

Question by: Kurt B on Jan 20, 2026, 5:42 PM

Correct. Each side of this union carries a male M42 x 2.0 thread at S30 size, so whatever you're mating it to on both ends needs to be a female DIN tube connection. It's a union in the true sense, pulling two separate tube ends together at a single point. Just make sure both lines are S30 DIN tube before you go ordering.

Answer by: Customer Support on Jan 22, 2026, 8:27 AM
