Din Union Complete

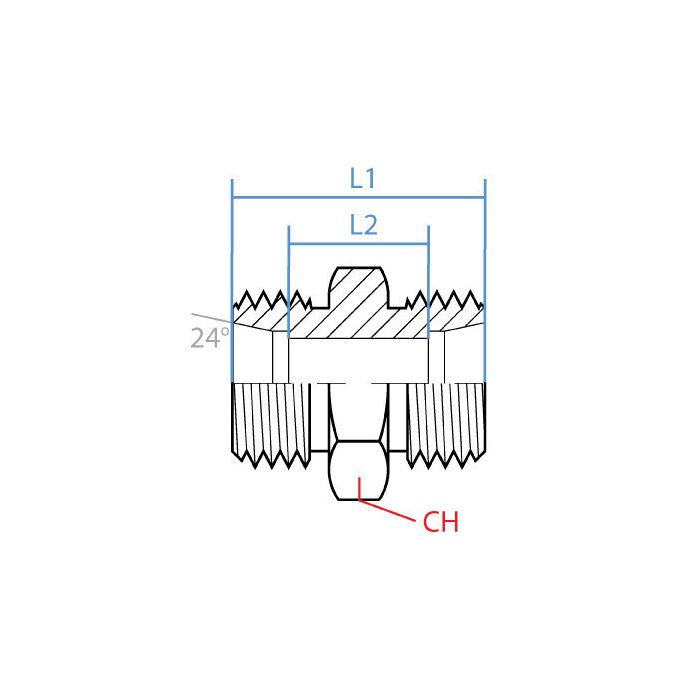

CH Width 22mm	L1 Length 34mm	L2 Length 19mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5000S-12C	Product Weight 0.13 lbs

Product Questions & Answers 3

Product Questions & Answers

What’s the width across the flats on this union? I need to get my wrench right.

Question by: Roy W on May 21, 2025, 7:09 AM

The wrench flat size (Ch Width) on this DIN union is 22mm.

Answer by: Customer Support on May 22, 2025, 8:00 AM

got a din tube setup with m20 x 1.5 on both ends. is this union the right match?

Question by: Tommy C on Feb 22, 2026, 8:18 AM

For a straight DIN tube union with M20 x 1.5 male threads on both sides, this part matches that layout. Both ends are called out as M20 x 1.5, with Side 1 and Side 2 listed as DIN Tube, size S12, gender M.

Answer by: Customer Support on Feb 23, 2026, 4:33 PM

part number 5000S-12C, is this the full union assembly or just one side of the fitting?

Question by: Hugh H on Sep 5, 2025, 7:40 AM

You're getting the complete union assembly with both sides included. Both ends are S12 DIN tube type with M20 x 1.5 threading, so it's ready to connect two lines without needing separate components.

Answer by: Customer Support on Sep 7, 2025, 6:25 AM
