Din Union Complete

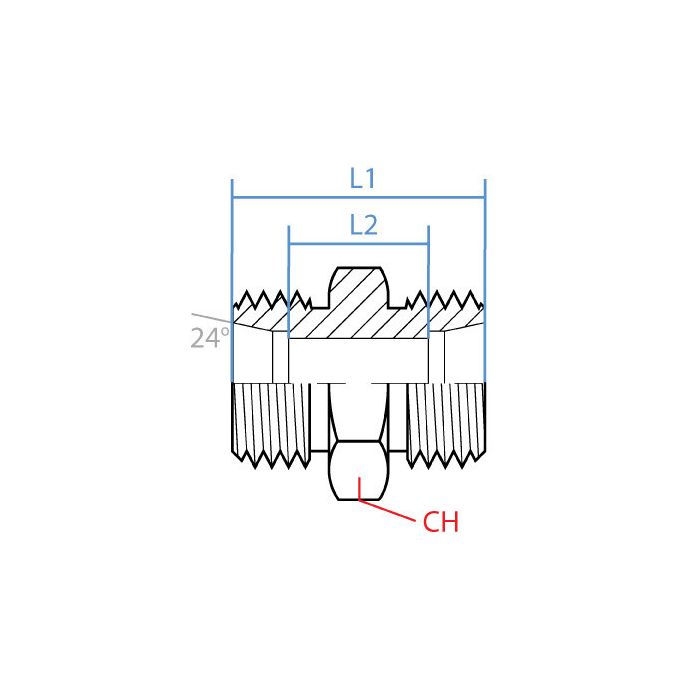

CH Width 17mm	L1 Length 32mm	L2 Length 18mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size S08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08733707, Alternate Part Number MINO-03671X96002	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5000S-08C	Product Weight 0.17 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fit okay with my existing S08 Din Tube setup? Just want to be sure before I order.

Question by: Wayne P on Mar 21, 2026, 7:17 PM

This union is made specifically for S08 size requirements adhering to Din Tube connection standards on both sides, so it should provide a proper fit with your existing setup.

Answer by: Customer Support on Mar 23, 2026, 6:02 AM

both sides on this union are M16 x 1.5 male thread, right? just want to make sure before i order

Question by: Kirk Y on Dec 22, 2025, 11:11 AM

Correct on both counts. Each end carries an M16 x 1.5 male thread in an S08 size, and both sides follow DIN Tube connection standards. The fitting runs straight through with no bends or offsets, so fluid moves in a direct line from one end to the other. At 32mm total length with an 18mm measurement on the secondary end, it sits fairly compact, which helps in tighter hydraulic connections layouts.

Answer by: Customer Support on Dec 23, 2025, 3:48 PM
