Din Union Complete

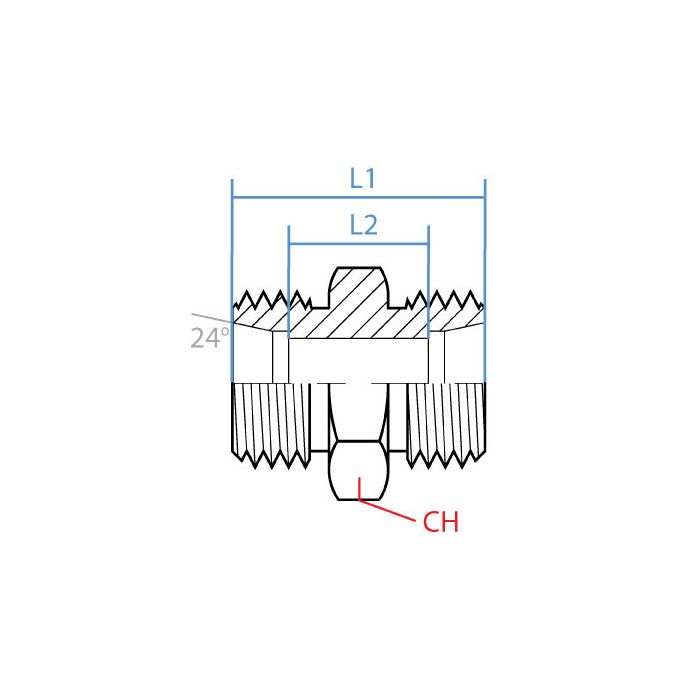

CH Width 17mm	L1 Length 23mm	L2 Length 11mm	Adaptall Shape Straight	Side 1 Callout M16 X 1.0	Side 1 Gender M	Side 1 Size LL12	Side 1 Type Din Tube	Side 2 Callout M16 X 1.0	Side 2 Gender M	Side 2 Size LL12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5000LL-12C	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

What's the wrench size needed for these fittings?

Question by: Harold W on Apr 13, 2025, 3:31 PM

This DIN union requires a 17mm wrench (Adaptall Ch Width) for proper installation and tightening.

Answer by: Customer Support on Apr 15, 2025, 3:10 PM

Both sides on this thing are LL12 DIN Tube, right? Just wanna make sure it ain't mixing sizes before I go swapping it in.

Question by: Billy M on Jul 8, 2025, 8:34 PM

Both sides are identical on this one. Each end is sized for LL12 DIN Tube connections with an M16 x 1.0 male thread callout, so you're working with a matched straight union all the way through. No mixing, no offset sizing.

Answer by: Customer Support on Jul 10, 2025, 7:27 AM

trying to tie two LL12 DIN tube ends together, is this the straight union with M16 x 1.0 male threads on both sides?

Question by: Denise H on Aug 31, 2025, 5:00 PM

For joining two matching DIN tube connections, it’s a straight union with M16 x 1.0 male on side 1 and side 2, and both ends are sized LL12 for DIN Tube connections.

Answer by: Customer Support on Sep 1, 2025, 9:06 PM
