Din Union Complete

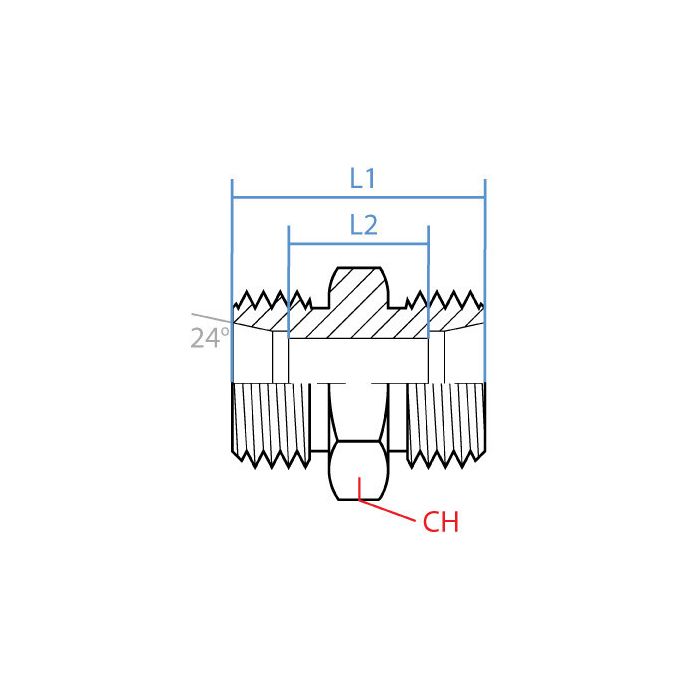

CH Width 55mm	L1 Length 43mm	L2 Length 21mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M52 X 2.0	Side 1 Gender M	Side 1 Size L42	Side 1 Type Din Tube	Side 2 Callout M52 X 2.0	Side 2 Gender M	Side 2 Size L42	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5000L-42C	Product Weight 1.40 lbs

Product Questions & Answers 1

Product Questions & Answers

Hey, just want to make sure this union will work with my existing L42 DIN tube setup, since they're both the same size?

Question by: Daryl H on Nov 1, 2025, 9:30 AM

This Adaptall DIN union is indeed made to join two L42 size DIN tubes together, with matching M52 x 2.0 male threads on each end. It'll give you a secure, straight connection in your hydraulic lines.

Answer by: Customer Support on Nov 2, 2025, 6:29 PM
