Din Union

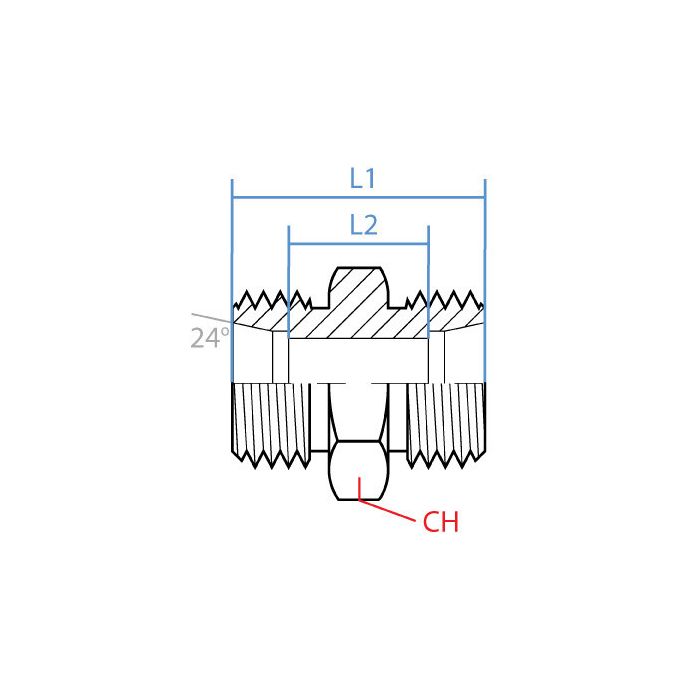

CH Width 32mm	L1 Length 33mm	L2 Length 18.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5000L-22-15	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

What two tube sizes does this union connect, and are both ends the same thread pitch?

Question by: Jerry C on Feb 2, 2026, 3:27 PM

Both ends are male DIN tube fittings, but they're different sizes. One side is M30 x 2.0 and the other is M22 x 1.5, so the thread pitch is not the same across both ends. The Adaptall size designations are L22 on side one and L15 on side two. It's a straight union, so there's no angle change, just a direct adaptation between those two DIN tube sizes.

Answer by: Customer Support on Feb 4, 2026, 6:55 AM
