Din Union

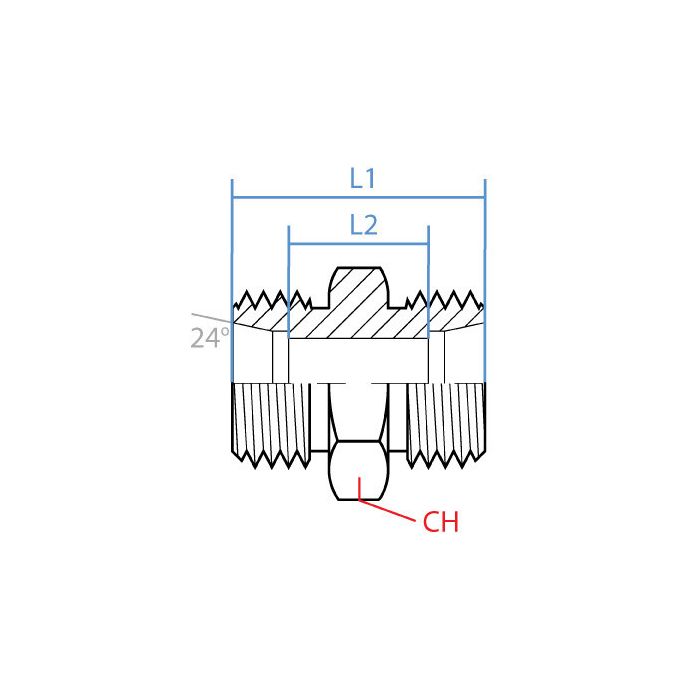

CH Width 24mm	L1 Length 29mm	L2 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size L10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5000L-15-10	Product Weight 0.99 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the thread size difference between the two ends on this union? trying to make sure I got the right one before I order

Question by: Hugh S on Oct 3, 2025, 8:41 PM

Side 1 runs M22 x 1.5 and connects to an L15 DIN tube. Side 2 is M16 x 1.5 and connects to an L10 DIN tube. Both ends are male. So if your setup has those two different tube sizes coming together in a straight run, this is the fitting that bridges them.

Answer by: Customer Support on Oct 5, 2025, 6:20 AM
