Din Union

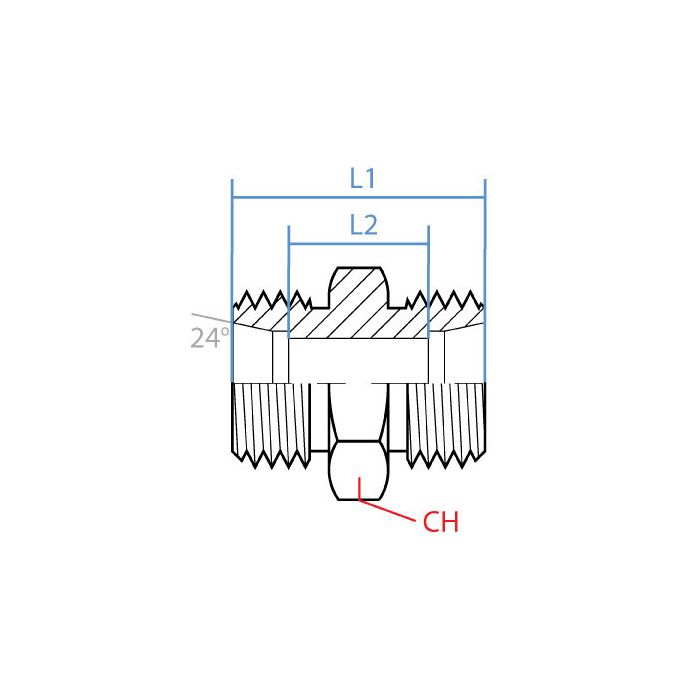

CH Width 19mm	L1 Length 28mm	L2 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size L10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5000L-12-10	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here fitting work to connect different size lines?

Question by: Cindy M on Aug 31, 2025, 6:19 AM

Yes, this DIN union adapts between an M18 x 1.5 male thread at an L12 tube size down to an M16 x 1.5 male thread at an L10 tube size.

Answer by: Customer Support on Sep 2, 2025, 6:13 AM

Got an L12 line feeding into an L10 section on a machine I'm working on, this union the right piece to tie those two together?

Question by: Wayne B on Jan 1, 2026, 1:37 PM

That's exactly what this fitting is built for. Side one runs M18 x 1.5 male thread at L12, and side two steps down to M16 x 1.5 male thread at L10, so it bridges those two DIN tube sizes in a single straight union. Steel construction, 28mm overall length, and a 19mm wrench flat means it goes in clean with standard tooling and doesn't take up much space in the line.

Answer by: Customer Support on Jan 2, 2026, 6:30 PM
