Din Union 5000L-10-08

Specifications

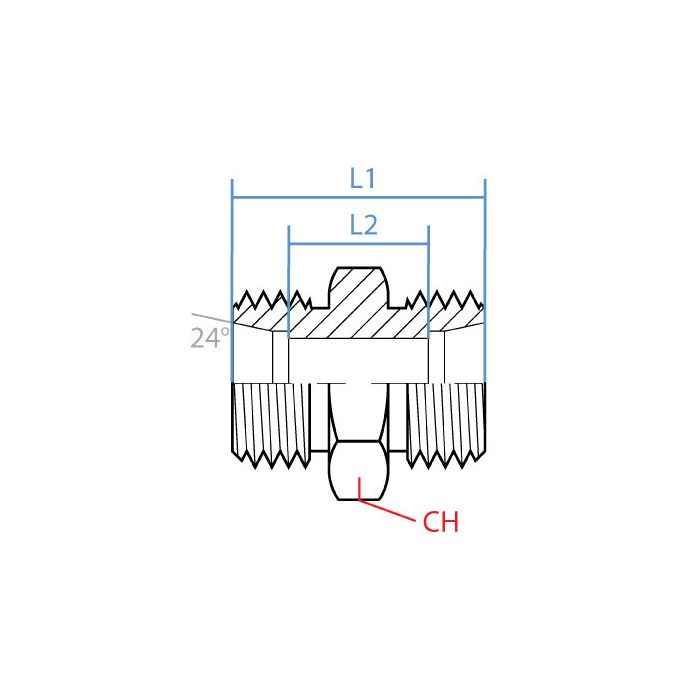

CH Width 17mm	L1 Length 26mm	L2 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5000L-10-08	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook two din tube ends together, is this the straight union with M16x1.5 on one side and M14x1.5 on the other?

Question by: Hank M on May 31, 2025, 6:18 PM

For tying two DIN tube male ends together, this union is a straight steel piece with a male M16 x 1.5 on Side 1 (size L10) and a male M14 x 1.5 on Side 2 (size L08).

Answer by: Customer Support on Jun 2, 2025, 6:07 AM

what's the thread difference between the two ends on this union? trying to connect two lines that ain't the same size

Question by: Ronnie C on Jan 8, 2026, 11:10 AM

One end is M16 x 1.5 and the other is M14 x 1.5, so yeah, they are two different thread sizes. That makes this a reducing union, which is handy when you've got a larger DIN tube line feeding into a smaller one. Both sides are male and both follow DIN tube fitting standards, so as long as your lines match those thread specs, you're good to go.

Answer by: Customer Support on Jan 10, 2026, 11:06 AM

Reckon this'll fit on my M14 setup?

Question by: Judy H on May 14, 2025, 2:51 PM

It'll fit if you've got a M14 x 1.5 connection since that's the Side 2 callout for this union. Side 1 takes a M16 x 1.5.

Answer by: Customer Support on May 15, 2025, 8:45 PM
