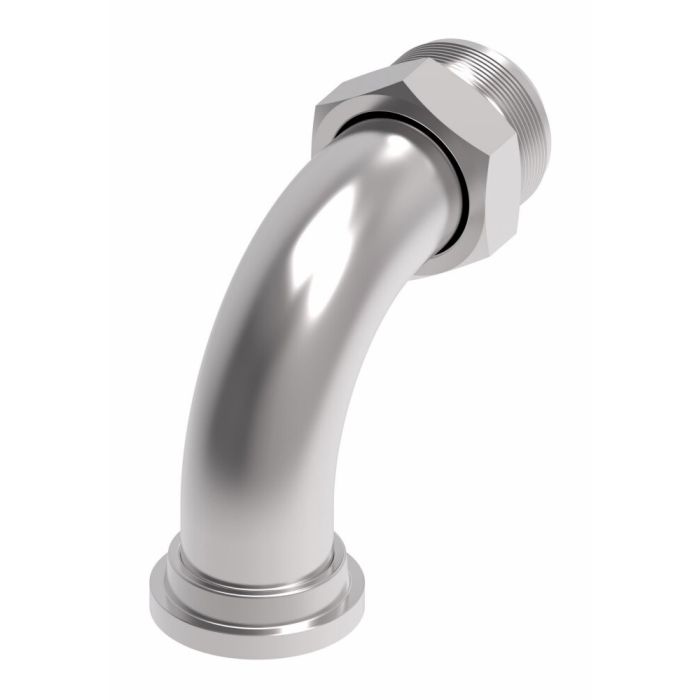

DANFOSS / EATON ADPT SWEEP 90 SPL FLG 500024-24-20S

Specifications

Alternate Part Numbers Alternate Part Number C1BR83, Alternate Part Number MI-00303008, Alternate Part Number MINO-00015F51864	Application Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling	Certifications SAE J514	Drop Dimension 2.50	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 2 13556	End Type 1 Flanged	End Type 2 SAE 37	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	ICC Elbow Adapters	Item Type Flanged /SAE 37° Male 90° Elbow Adapter	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.12	Sub Brand None	Supplier Part Number 500024-24-20S	Product Weight 1.16 lbs

Product Questions & Answers 1

Product Questions & Answers

got a split flange connection on a hydraulic line that needs to make a 90 degree turn in a pretty tight spot. this the right kind of fitting for that?

Question by: Tommy C on Jun 8, 2025, 2:02 PM

For tight routing situations where a straight adapter just won't cut it, a 90 degree elbow like this one is exactly what you want. The flanged end connects to your SAE Code 61 split flange port, and the other end is a 37 degree flare male. The sweep design helps reduce turbulence through the bend compared to a sharp elbow, which matters when you're working in confined areas and can't afford a lot of flow restriction.

Answer by: Customer Support on Jun 10, 2025, 12:44 PM
