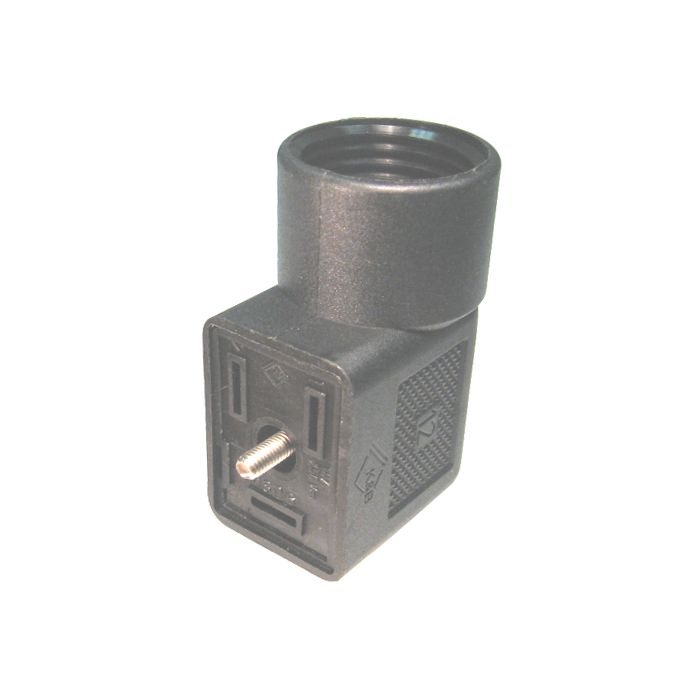

5000 Series MINI Solenoid Connectors
Environmental Rating |
Nema Type 4 and IP65 dust tight and water resistant. |
Features |
Cable outlet can be assembled in 180° increments. Indicator lights and pre-wired options are available. Available in Black, Gray or Translucent (for models with lights). |
Maximum Cable Diameter |
Strain Relief - 0.240 to 0.310 inches max. Conduit - 0.410 inches max. 14 AWG max conductor wire. |
Maximum Current Rating |
10 amps. |
Maximum Rated Voltage |
300 VDC / 250 VAC @ 50/60 Hz. |
Normal Polarity |
1 = Positive, High. 2 = Negative, Neutral |
Temperature Range |
Nitrile gasket -13°F to 194°F. Silicone gasket -40°F to 257°F. |
Products
| Model Number | Ground | Lights | Seal Material | Connector Type | Color | Diameter (in) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| 5100-1030000 | Down | -- | Nitrile | 1/2 NPT | Black |
|
