45* Din X Male Bspp Adjustable

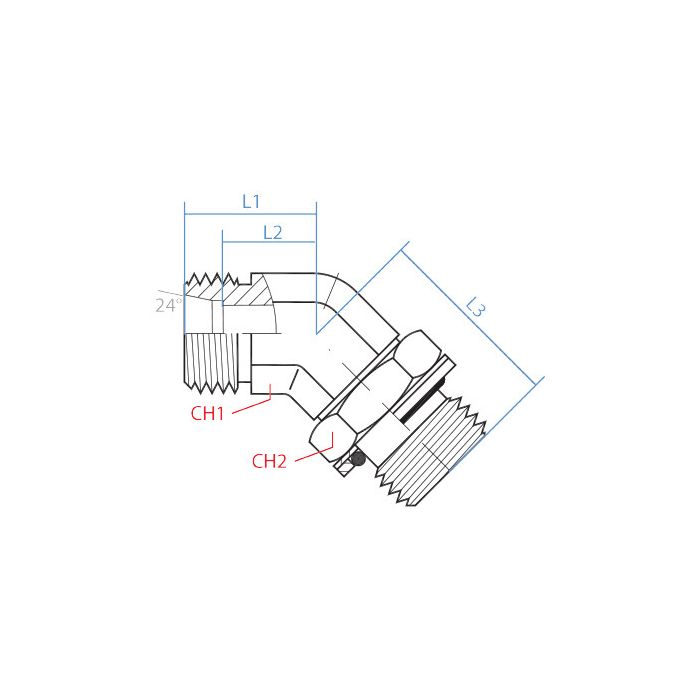

CH1 Width 14mm	CH2 Width 19mm	L1 Length 18mm	L2 Length 11mm	L3 Length 31.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058S-06-04	Product Weight 0.12 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay in an industrial hydraulic setup?

Question by: Norm L on Oct 31, 2025, 11:35 AM

Constructed from durable steel, this adapter is designed for reliability in demanding industrial environments, so it should work fine.

Answer by: Customer Support on Nov 1, 2025, 8:34 PM

got a din tube end that’s M14 x 1.5, will this elbow screw right onto a G 1/4 - 19 port?

Question by: Vince P on Nov 24, 2025, 9:48 PM

The DIN tube side is a male M14 x 1.5, and the other end is a male BSPP G 1/4 - 19. It is a 45 degree elbow adapter meant to connect a DIN tube fitting to a BSPP threaded connection.

Answer by: Customer Support on Nov 26, 2025, 6:53 AM
