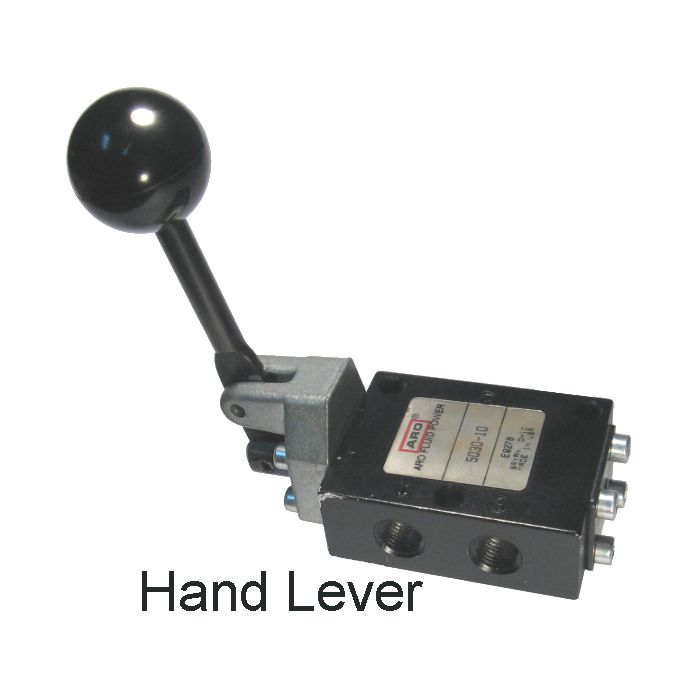

50 Series Manually Operated Pneumatic Valves, Up To 16 SCFM & 150 PSI
Actuators |
Hand Lever, Palm Button, Manual Bleed. |
Application |
Low to moderate flow applications requiring manual valve operation. |
Features |
Compact size. |
Flow Rating |
Based on 100 PSIG input and 85 PSIG output. |
Lubrication |
Valves use O-ring seals. For maximum performance and life expectancy, standard air line lubrication should be used. |
Materials |
Extruded aluminum body. Steel spool (Hand Lever and Palm Button). Aluminum spool (Manual Bleed). Buna-N spool seals. |
Operating Pressure Range |
20-150 PSI. |
Temperature Range |
-10°F to 180°F. |
Products
| Model Number | Actuator Type | Valve Type | Spool Action | Ports | Flow Rating (SCFM) | CV Factor | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| 5030-10 | Hand Lever | 3-way 2-position | Manual Return | 1/8 NPT (Side) | 16 | 0.4300 |
|
