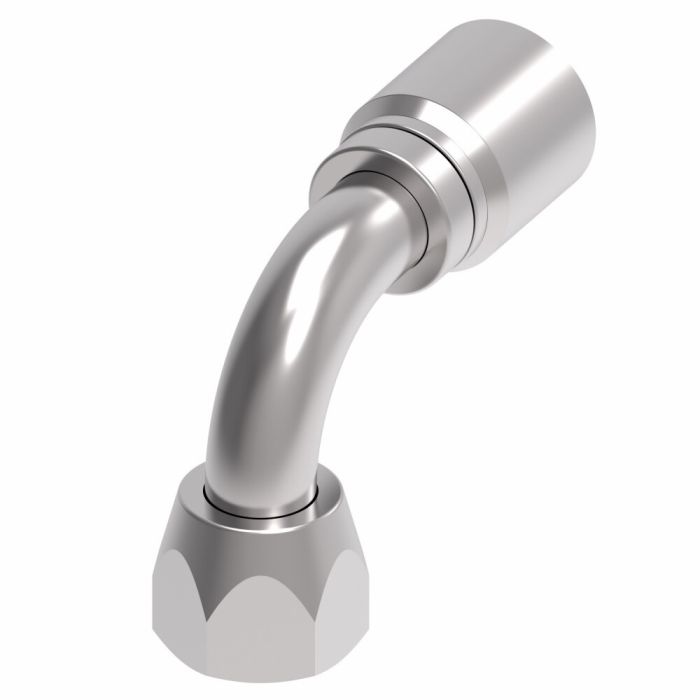

main product photo

Aeroquip Fitting Perm Thermo

Ask A Question
Drop Dimension
1.54
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
0.75
End Type 1
JIC 37
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hex Size 2
0.88
Hose Dash Size
-6
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
Product Material
Carbon Steel
Product Width
0.96
Sub Brand
None
Supplier Part Number
4TA8FJB6
Product Weight
0.23 lbs
Product Questions & Answers 2

Product Questions & Answers

Does this fitting need any kind of calibration or torque setup before putting it to work, or does it just go on straight?
Question by: Ralph O on Dec 21, 2025, 12:31 PM
No calibration or adjustment needed on this one. It's ready to install as-is, which makes it a pretty easy swap into most hydraulic assemblies. The JIC 37 female swivel end connects to your line on one side, and the hose end takes a -6 dash size hose. Hex size is 0.875, so standard wrenching gets you there without any fuss.
Answer by: Customer Support on Dec 23, 2025, 6:13 AM
got a hose with a -6 end, is this the right fitting for it or am i off a size
Question by: Pete C on Mar 14, 2026, 12:50 PM
For hose sizing, it matches a -6 hose dash size. On the threaded end, it is a JIC 37 degree female swivel with a 0.75 inch end size, so you will want that to line up with the JIC male it is mating to.
Answer by: Customer Support on Mar 16, 2026, 6:47 AM
