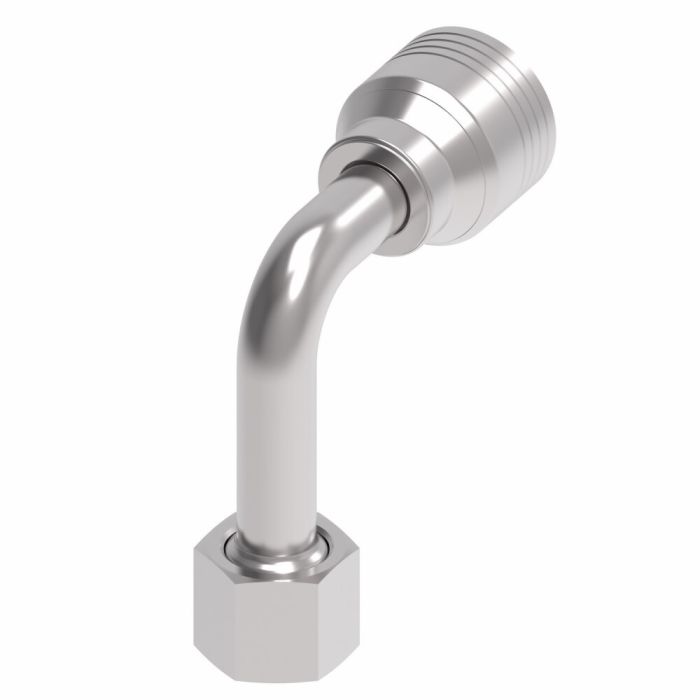

Danfoss / Eaton 4S 100R12 LONG DROP 5/8 ORS 4SA10FRC10

Specifications

Certifications SAE J1176	Drop Dimension 2.76	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 1	End Type 1 ORS	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -10	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 1.48	Sub Brand None	Supplier Part Number 4SA10FRC10	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

what's the drop dimension on this 90-degree elbow, and will that work for tight routing situations where I ain't got a whole lot of clearance to work with?

Question by: Stan H on Aug 21, 2025, 8:02 AM

The drop on this fitting comes in at 2.76 inches. That extra length off the elbow is what makes it a "long drop" configuration, and it gives you more reach when you're working around brackets, frames, or other hardware that a standard elbow just won't clear. Whether that dimension fits your specific routing depends on your setup, but for assemblies where you need the hose to pull away from the port at a distance before it transitions, that 2.76 inches is built exactly for that purpose.

Answer by: Customer Support on Aug 22, 2025, 5:55 PM

trying to replace a 90 degree long drop elbow, is this the one with a 2.76 drop and a 5/8 ORS swivel?

Question by: Marvin R on Nov 18, 2025, 10:20 AM

The key identifiers on this part are the 90 degree long drop elbow style, a 2.760 inch drop dimension, and a female ORS swivel end built to SAE J1176. It is also tied to hose dash size -10 and uses carbon steel with Dura-Kote plating.

Answer by: Customer Support on Nov 20, 2025, 9:57 AM
