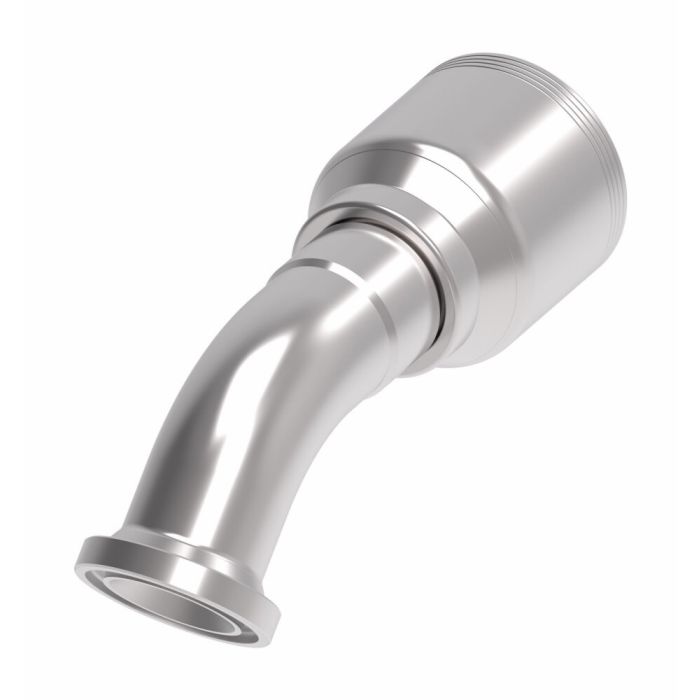

main product photo

Split Flange Code 61 30°

Ask A Question
Certifications
SAE J1176
Drop Dimension
0.95
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-20
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.46
Sub Brand
None
Supplier Part Number
4S24FLF20
Product Weight
2.85 lbs
Product Questions & Answers 1

Product Questions & Answers

what's the angle on this flange fitting, is it the 30 degree version or am I looking at the wrong part number?
Question by: Dwayne B on Oct 24, 2025, 4:04 PM
That's the 30 degree elbow configuration. The part number 4S24FLF20 is the SAE Code 61 split flange fitting with a 30 degree bend, sized at a -20 hose dash size. If your line needs a straight flange or a different angle, you'd be looking at a different part in the 4S series lineup.
Answer by: Customer Support on Oct 26, 2025, 6:43 AM
