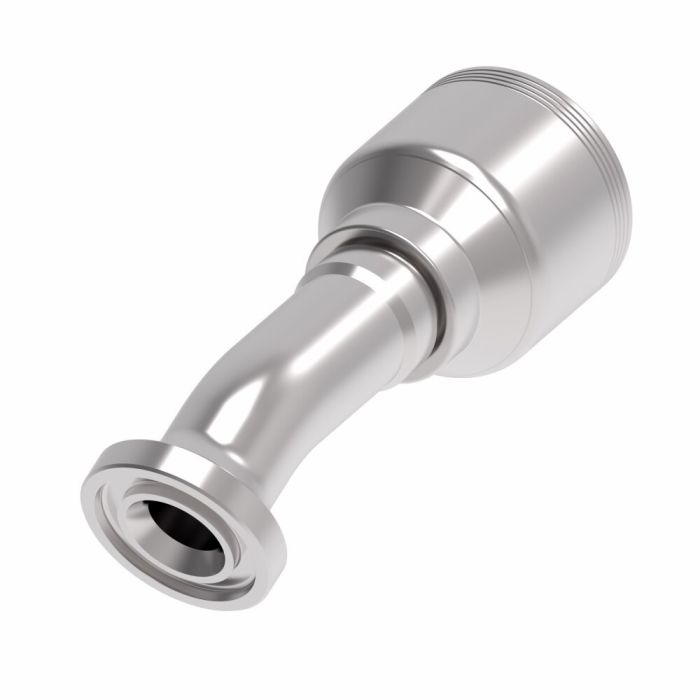

Split Flange Code 61 22.5°

Certifications SAE J1176	Drop Dimension 0.67	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -20	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.46	Sub Brand None	Supplier Part Number 4S24FLD20	Product Weight 2.85 lbs

Product Questions & Answers 1

Product Questions & Answers

does this fit a -20 hose dash size or do i need to look at something different for that

Question by: Hugh W on Nov 10, 2025, 8:14 PM

the -20 hose dash size is exactly what this fitting is built for. The drop dimension runs 0.6700, and it connects a flanged end to a line, hose, or tube on the other side. Carbon steel construction with Dura-Kote plating, so corrosion resistance is solid for industrial environments. If your setup calls for a Code 61 flange at a 22.5 degree angle, this one fits the bill.

Answer by: Customer Support on Nov 12, 2025, 7:40 AM
