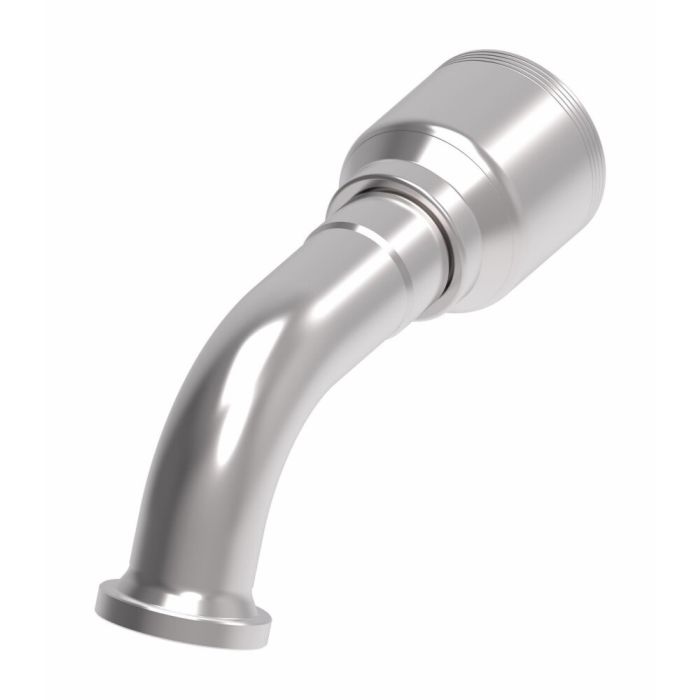

Split Flange Code 61 67.5° 4S20FLE20

Specifications

Certifications SAE J1176	Drop Dimension 2.54	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -20	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.46	Sub Brand None	Supplier Part Number 4S20FLE20	Product Weight 2.74 lbs

Product Questions & Answers 2

Product Questions & Answers

got a 4-spiral hose assembly running SAE Code 61 flanged connections and need a 67.5 elbow to clear some frame bracing. this the right fitting for that setup?

Question by: Gary T on Jun 28, 2025, 4:54 PM

For a 4-spiral hose with Code 61 flange ends, yes, this is built exactly for that application. It's an Eaton Aeroquip 4S series crimp fitting in a -20 hose dash size, so confirm your hose size lines up with that. The 67.5 degree elbow angle gives you that offset routing without having to force a 90 or live with a straight fitting fighting your layout. Carbon steel construction with Dura-Kote plating keeps corrosion from becoming a problem in tight, hard-to-service spots.

Answer by: Customer Support on Jun 29, 2025, 6:32 PM

Does this fitting hold up well in situations where there's a lot of vibration?

Question by: Curt S on Apr 5, 2025, 9:49 AM

Designed with performance and uptime in mind, this fitting should provide extended hose assembly life even in demanding conditions.

Answer by: Customer Support on Apr 6, 2025, 1:44 PM
