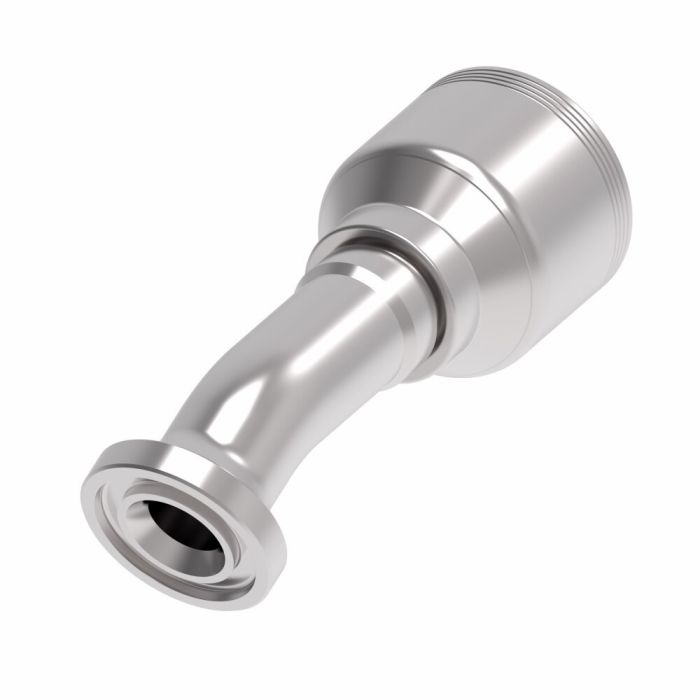

Split Flange Code 61 22.5°

Certifications SAE J1176	Drop Dimension 0.64	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -20	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.46	Sub Brand None	Supplier Part Number 4S20FLD20	Product Weight 2.35 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a 4-wire spiral hose setup running -20 line and need a split flange connection at a 22.5 degree angle. This the right fitting for that?

Question by: Roy S on Apr 10, 2025, 10:47 AM

That's what this one's built for. The 4S20FLD20 is a -20 dash size crimp fitting with a Code 61 split flange end and a 22.5 degree elbow configuration, made specifically for 4-wire spiral hose assemblies. The flanged end connects to SAE Code 61 ports, and the angled body helps route the hose where a straight connection would be awkward or put too much stress on the line.

Answer by: Customer Support on Apr 11, 2025, 11:37 AM
