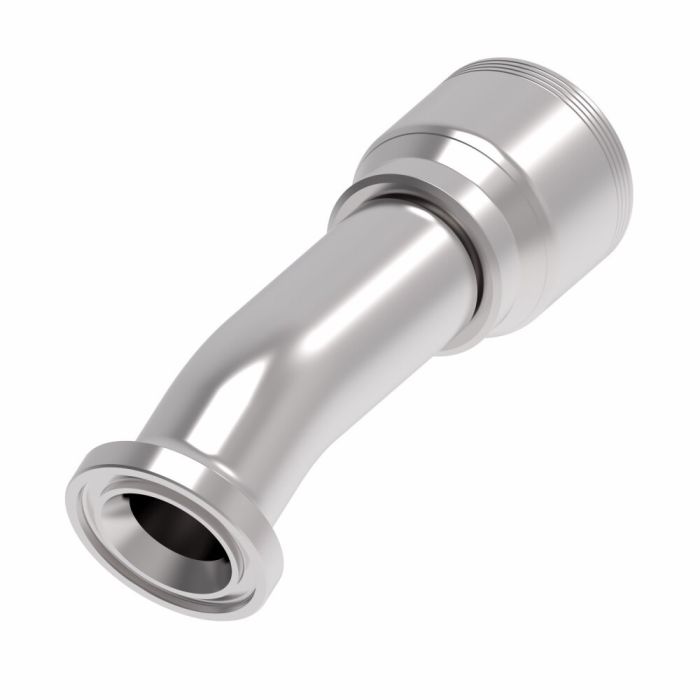

Split Flange Code 61 22.5° 4S20FLD16

Specifications

Certifications SAE J1176	Drop Dimension 0.64	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -16	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.08	Sub Brand None	Supplier Part Number 4S20FLD16	Product Weight 1.86 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work with standard SAE Code 61 flanges? Just want to make sure before I order a bunch.

Question by: Shawn B on Sep 21, 2025, 11:10 AM

This Eaton Aeroquip fitting is indeed designed to meet SAE J1176 standards for Code 61 flanges, ensuring proper fit and performance.

Answer by: Customer Support on Sep 22, 2025, 9:03 PM

does this fitting work with 4-wire spiral hose on -16 dash size applications?

Question by: Tony W on Jan 4, 2026, 2:26 PM

For -16 hose dash size with 4-wire spiral hose, this is exactly what the 4S20FLD16 is built around. It's part of Eaton Aeroquip's 4S series crimp fittings, so the crimp end is matched to that hose construction and that dash size specifically. The flange end connects via SAE Code 61 split flange, and the 22.5 degree elbow gives you a modest angular offset when a straight connection won't clear your routing.

Answer by: Customer Support on Jan 6, 2026, 6:11 AM
