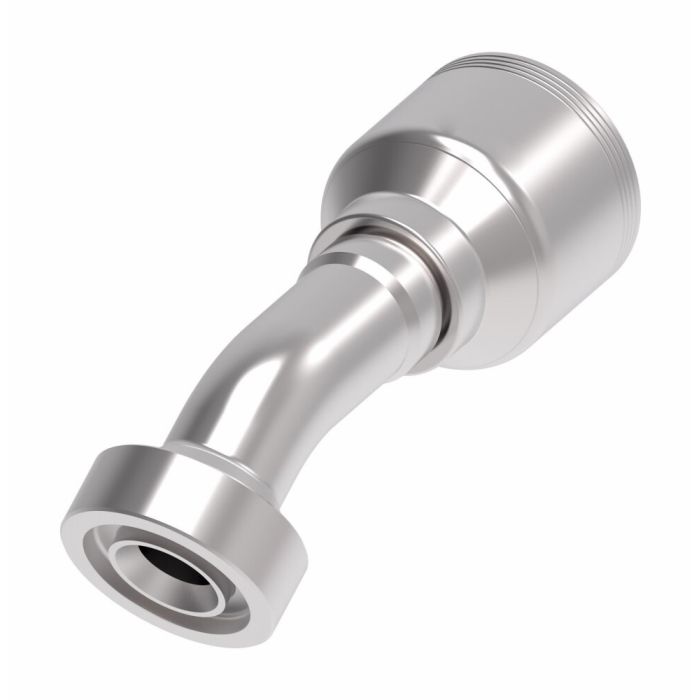

Cat Flange 30° 4S20CTF16

Specifications

Certifications SAE J1176	Drop Dimension 1.00	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -16	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.13	Sub Brand None	Supplier Part Number 4S20CTF16	Product Weight 2.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this fitting will hold up okay in a hydraulic setup running around 3000 psi?

Question by: Ralph K on Sep 11, 2025, 8:48 AM

Carbon steel provides the necessary strength for demanding hydraulic applications, and this Eaton Aeroquip fitting is engineered to handle the pressures associated with those systems.

Answer by: Customer Support on Sep 12, 2025, 4:45 PM

does this fitting work with 4-wire spiral hose on a -16 dash size application?

Question by: Roy E on Jan 17, 2026, 7:38 AM

For -16 hose dash size with 4-wire spiral hose, yes, that lines up with what this fitting is built for. It's part of the Eaton Aeroquip 4S series, which is specifically a crimp fitting line for that hose type. The 30-degree CAT flange elbow configuration handles the flanged end on one side and connects to the hose on the other, so it suits setups where you need an angled transition into a CAT-style flange port.

Answer by: Customer Support on Jan 18, 2026, 3:02 PM
