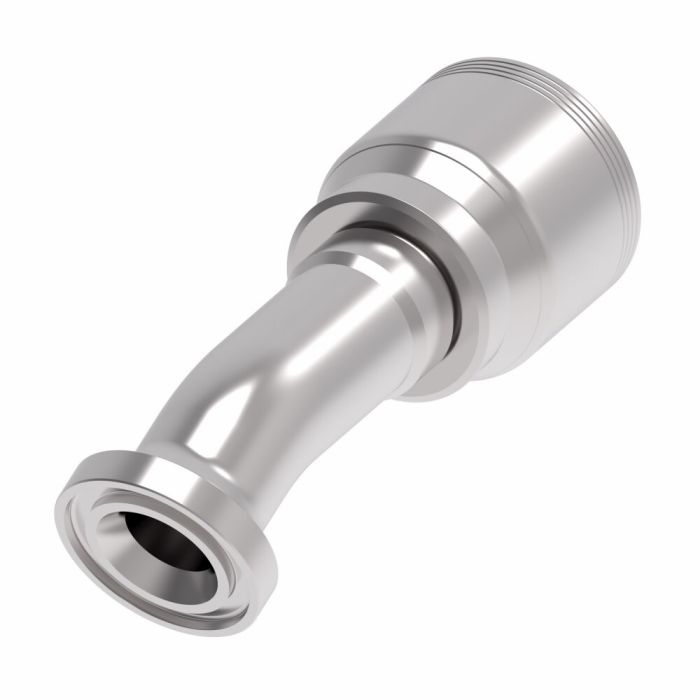

Split Flange Code 61 22.5°

Certifications SAE J1176	Drop Dimension 0.53	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -16	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.08	Sub Brand None	Supplier Part Number 4S16FLD16	Product Weight 1.41 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting says 22.5 degree angle, does that mean it ain't gonna sit flush like a standard straight flange would?

Question by: Scott J on Mar 13, 2026, 6:23 AM

That angle is intentional. The 22.5 degree offset lets you route hose or tube in tighter spaces where a straight flange would put too much stress on the line or just plain wouldn't clear surrounding components. It's a split flange design, so it clamps around the flange head rather than threading on, which keeps everything secure even with that angular offset. If your current setup has a straight Code 61 flange port, this fitting will still mate to it correctly. The angle affects the direction the hose exits, not the port connection itself.
