Alternate Part NumberMI-08051482, Alternate Part Number MINO-00015X79237
Certifications
SAE J1176
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
trying to match up parts here, is 4S16FL12 one of those SAE Code 61 flange crimp fittings for a -12 hose?
Question by: Ross W on May 11, 2025, 3:21 PM

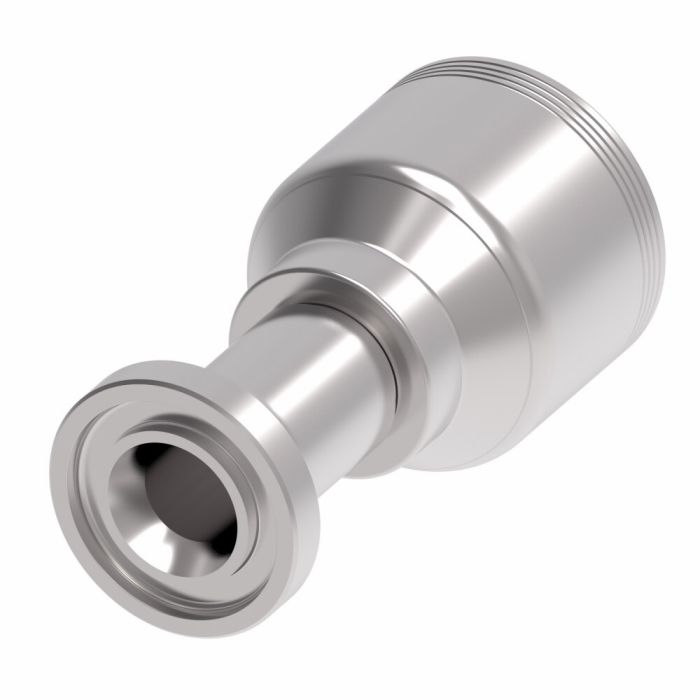

For fit confirmation, 4S16FL12 is a Danfoss Power Solutions Aeroquip 4S Series crimp hose fitting with an SAE Code 61 flange end, and it is sized for a -12 hose dash.
Answer by: Customer Support on May 12, 2025, 5:07 PM
got a 4-wire spiral hose with a -12 size, is this the right fitting for that?
Question by: Dwayne S on May 8, 2025, 6:20 PM
Match-up wise, the key callout here is the hose dash size. This fitting is a 4-wire spiral TTC style in the 4S series and it is listed as dash -12, so it is meant to pair with a -12 hose in that family.
Answer by: Customer Support on May 10, 2025, 7:51 AM
Does this fitting need any kind of adjustable end or special calibration before you put it on?
Question by: Duane S on Apr 11, 2025, 6:53 PM
No extra calibration or adjustable end is needed. It goes on as a complete fitting assembly, which keeps the install pretty straightforward. The flanged connection end works with line, hose, and tube configurations, so once you have the right dash size matched up, you're ready to go.
Answer by: Customer Support on Apr 13, 2025, 9:14 AM
