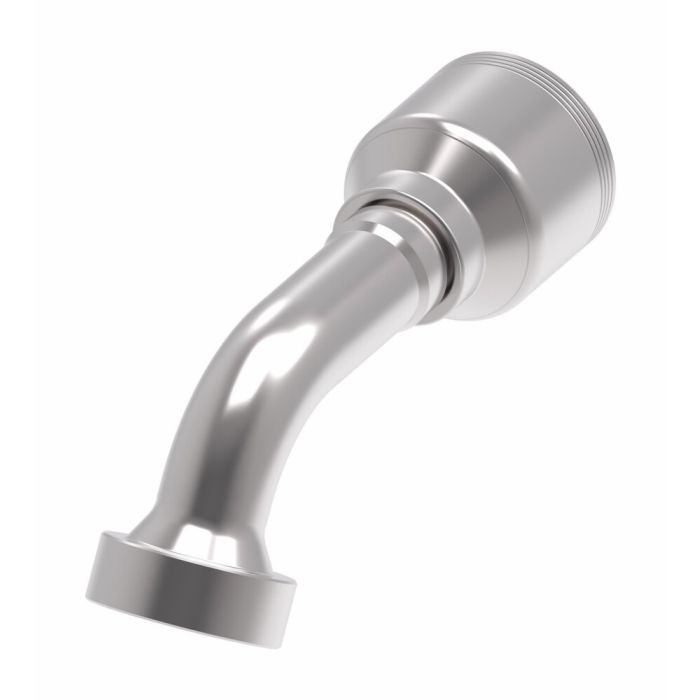

Cat Flange 60°

Certifications SAE J1176	Drop Dimension 1.92	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -16	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.08	Sub Brand None	Supplier Part Number 4S16CTG16	Product Weight 1.90 lbs

Product Questions & Answers 2

Product Questions & Answers

does this fitting work with 4-wire spiral hose on a -16 dash size application, or is that not what its meant for?

Question by: Howard T on Feb 13, 2026, 11:03 AM

That's what it's built for. The 4S16CTG16 is part of Eaton Aeroquip's 4S series, which is engineered specifically for 4-wire spiral hose in a -16 dash size. The flanged end connects at 60 degrees, making it a solid choice when you need to route a hose at an angle off a CAT-style flange port without fighting a straight fitting into a tight space.

Answer by: Customer Support on Feb 14, 2026, 6:35 PM

Will this flange fitting work with a 4-wire spiral hose?

Question by: Rick H on Dec 25, 2025, 3:32 PM

This Eaton Aeroquip fitting is indeed designed for use with 4-wire spiral TTC (Tube, Tube, Connection) hose.

Answer by: Customer Support on Dec 27, 2025, 12:29 PM
