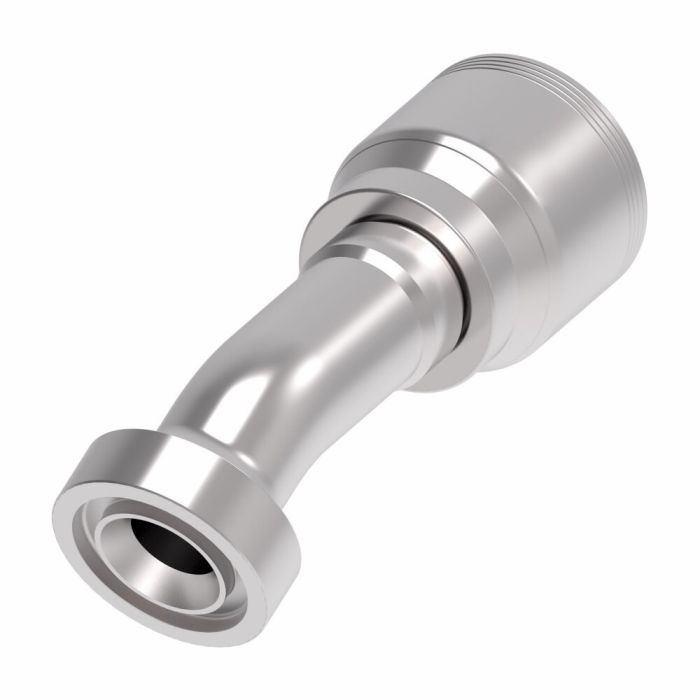

Cat Flange 22.5° 4S16CTD16

Specifications

Certifications SAE J1176	Drop Dimension 0.60	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -16	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.08	Sub Brand None	Supplier Part Number 4S16CTD16	Product Weight 1.60 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this flange hold up in a hydraulic system running around 3000 PSI?

Question by: Dean S on Dec 29, 2025, 9:50 AM

Engineered with durable carbon steel and Dura-Kote plating, this fitting is designed for longevity and reliability in demanding applications. Its compliance with SAE J1176 standards ensures it meets high industry standards for quality and safety.

Answer by: Customer Support on Dec 30, 2025, 2:54 PM

does the 22.5 elbow angle on this fitting work for tight routing situations where a full 45 just won't fit?

Question by: Ralph H on Oct 14, 2025, 5:20 PM

That angle is genuinely useful when you're working in a confined space and a 45-degree elbow would put you into interference with a bracket or frame member. The 22.5-degree offset gives you a shallower redirect, so the hose can clear obstacles without forcing a sharp bend. It's a -16 dash size with flanged and line/hose/tube end types, so it's built to drop into assemblies where a standard elbow would cause clearance problems.

Answer by: Customer Support on Oct 16, 2025, 6:55 AM
