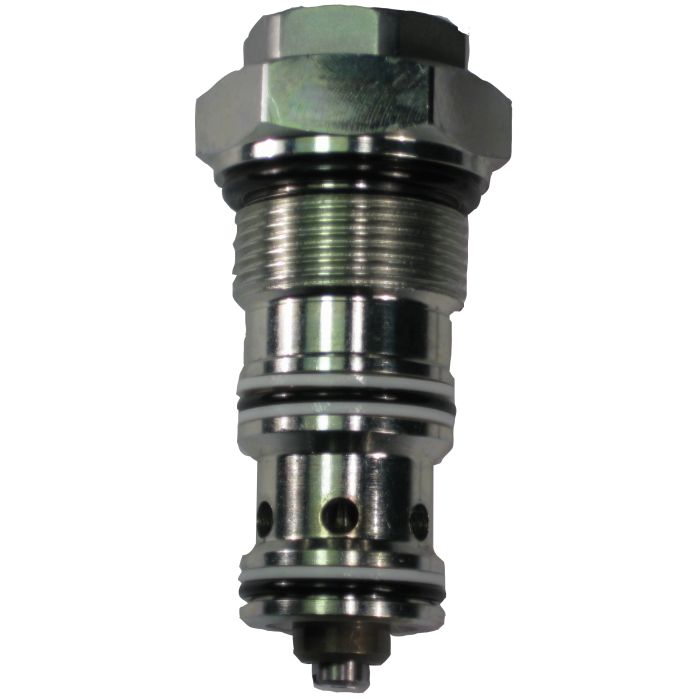

4CKD90 Series Single Pilot Operated Cartridge Check Valves, Up To 6000 PSI & 24 GPM
Application & Operation |
A decompression pilot check can be used in most applications that use a standard pilot operated check. Free flow in one direction and load holding in the other. The decompression feature allows locked-in pressure to decay in a controlled fashion, reducing hydraulic noise and instability caused by the rapid loss of energy from the actuator. The valve is effective in clamping circuits and when used with intensifiers or when there are high load induced pressures. |
Cartridge |
Model 4CKD90, sold seperately |
Flow Rating |
24 GPM |
Housing |
Cavity Size A12336, sold separately. |
Maximum Operating Pressure |
Cylinder Port 1: 6000 psi, Ports 2 & 3: 5000 psi |
Pilot Ratios |
25:1 decompression stage, 3:1 main stage |
Recommended Filtration |
18/13 |
Temperature Range |
-22° to +194°F |
Products
| Part Number | Model Number | Pilot Ratio | Seal Material | Price | Buy Now |
|---|---|---|---|---|---|
| 401AA00006A | 4CKD901S3 | 25:1 | Nitrile |
|
