Adaptall 45* Din X Male Bspp Adjustable 5058L-22-12

Specifications

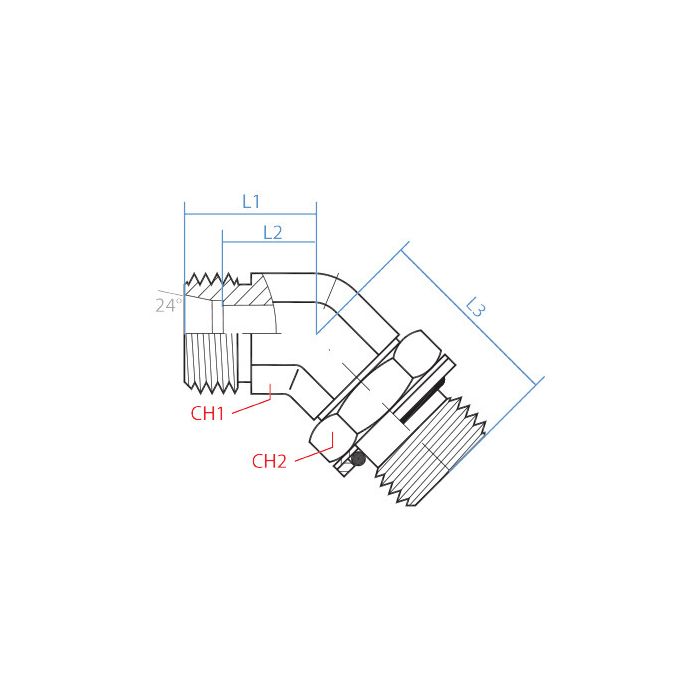

CH1 Width 27mm	CH2 Width 36mm	L1 Length 26mm	L2 Length 18.5mm	L3 Length 46mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058L-22-12	Product Weight 0.54 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s M30 x 2.0 on the DIN side, will this elbow mate up to that and a 3/4 BSPP port?

Question by: Randy H on May 5, 2025, 11:22 AM

For a DIN tube connection, the Side 1 end is M30 x 2.0 in the L22 series, and the other end is a 3/4 inch male BSPP thread listed as G 3/4-14, so it is made to bridge those two connection standards in one fitting.

Answer by: Customer Support on May 6, 2025, 3:19 PM

Got a hydraulic line that needs to make a 45-degree turn and tie into a BSPP port, will this fitting handle that transition in one piece?

Question by: Dean R on Jun 13, 2025, 11:09 AM

That's what it's built for. One side is an M30 x 2.0 DIN tube end (L22 series) and the other is a 3/4" male BSPP thread, so you're getting a DIN-to-BSPP crossover right at that 45-degree angle without needing extra adapters in between. The steel body keeps it solid, and the overall length runs 46mm, so it stays pretty compact even with the elbow geometry factored in.

Answer by: Customer Support on Jun 14, 2025, 7:43 PM
