Adaptall 45* Din X Male Bspp Adjustable 5058L-18-08

Specifications

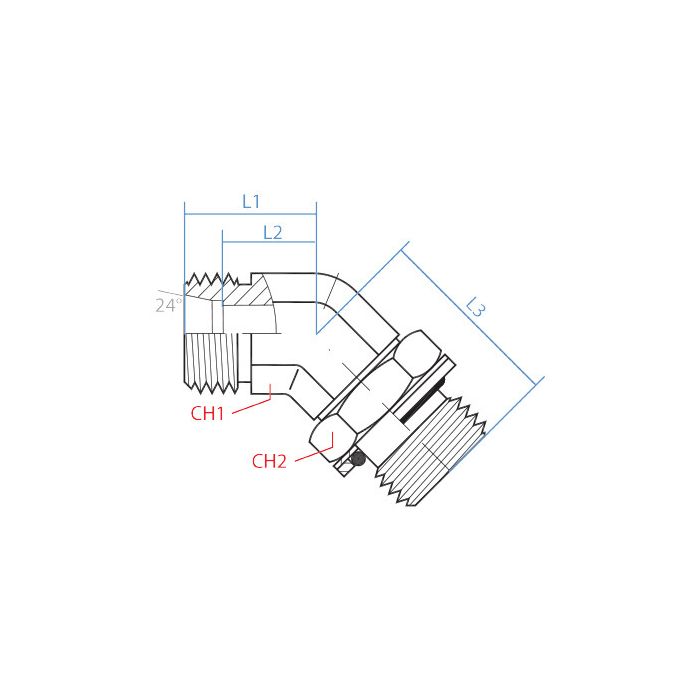

CH1 Width 27mm	CH2 Width 27mm	L1 Length 24.5mm	L2 Length 17mm	L3 Length 43mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058L-18-08	Product Weight 0.39 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap an elbow on a line, is this the adjustable 45 degree one with M26 x 1.5 on one side and G 1/2-14 on the other?

Question by: Tony B on Aug 10, 2025, 9:22 PM

For a DIN tube to BSPP male elbow connection, it matches those thread callouts: Side 1 is M26 x 1.5 (DIN tube, male, size L18) and Side 2 is G 1/2-14 (BSPP, male, 1/2 inch). The body is a 45° elbow and it is listed as adjustable.

Answer by: Customer Support on Aug 12, 2025, 6:26 AM

fitting's got a 45 degree angle on it, so which end threads into the BSPP port and which one connects to the tube?

Question by: Phil H on Jan 8, 2026, 2:26 PM

The male BSPP thread, G 1/2 with 14 threads per inch, is what goes into your BSPP port. The other end is the DIN tube side, M26 x 1.5, sized for an L18 tube. Both sides are male, so you're threading into female receivers on both ends. The adjustable feature on the BSPP side lets you rotate the elbow to your preferred position before locking it down, which saves a lot of headache when you're trying to clear tight spaces.

Answer by: Customer Support on Jan 9, 2026, 4:13 PM
