Adaptall 45* Din X Male Bspp Adjustable 5058L-15-08

Specifications

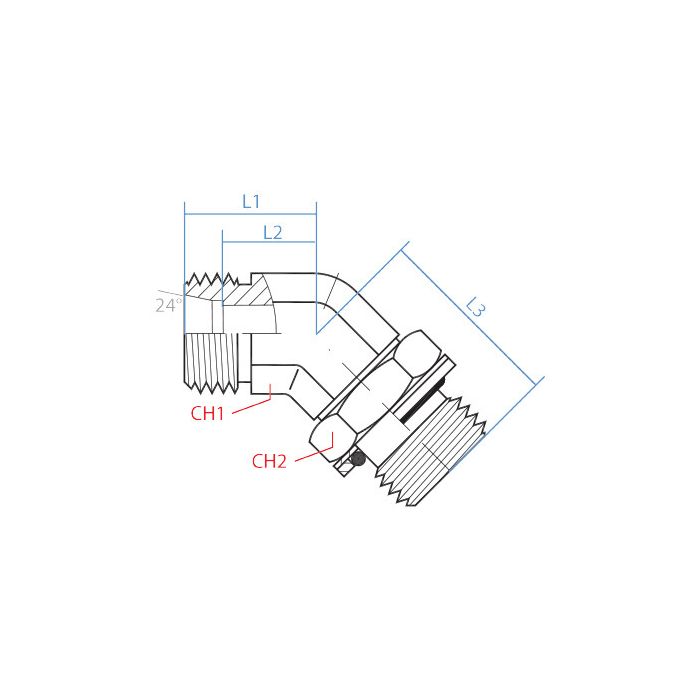

CH1 Width 22mm	CH2 Width 27mm	L1 Length 24mm	L2 Length 17mm	L3 Length 40mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058L-15-08	Product Weight 0.33 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap an elbow on a tight skid, what exact threads are on each end of this adjustable 45 degree adapter?

Question by: Larry G on Dec 30, 2025, 7:40 AM

On the DIN tube side it is an M22 x 1.5 male connection, and on the BSPP side it is a G 1/2 - 14 male connection.

Answer by: Customer Support on Dec 31, 2025, 8:20 PM

Got a G 1/2 BSPP male port on a manifold block and need to come off it at a 45 degree angle with DIN tube, this the right piece for that?

Question by: Rod T on Aug 1, 2025, 3:42 PM

That setup is exactly what this adapter is built for. One end is a G 1/2-14 BSPP male, the other is an M22 x 1.5 DIN tube male, and the 45 degree elbow lets you redirect the line without having to bend your tubing hard or fight for clearance. Both sides are male, so make sure your manifold port and tube fitting are both female to receive them. Overall length runs 40mm, so it fits reasonably tight quarters without much fuss.

Answer by: Customer Support on Aug 3, 2025, 6:33 AM

Will this fitting hold up if I'm using it for hydraulics on a tractor?

Question by: Shawn D on Sep 18, 2025, 9:01 PM

Crafted from durable steel, this adapter is built to withstand the demands of hydraulic systems, offering reliable performance in various industrial setups, including tractors.

Answer by: Customer Support on Sep 20, 2025, 8:02 AM
